Brand: Iscar

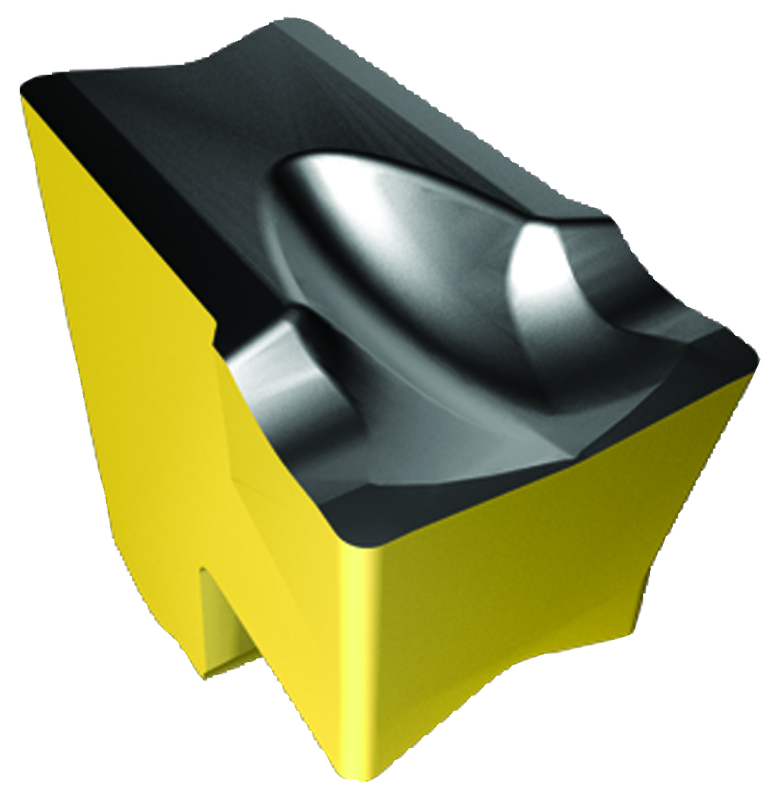

Iscar EH6003638 TAG L2JS-15D IC808
SKU: FTS-EH6003638
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 6003638 TAG L2JS-15D IC808Full Description
| Corner Radius (RE) | 0.0008" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Cutting Edge Material | Carbide | Max. Grooving Feed (fg(max)) | 0.0024 "/rev |
| Coating | TiAlN+AlTiN+TiN | Min. Grooving Feed (fg(min)) | 0.0008 "/rev |
| Grade | IC808 | Tool Type | Parting & Grooving Inserts |
| Shape | 90° Rectangular | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Body Material | Carbide |
| Application | | Parting | |
Family Description
First choice for soft materials, alloy steel and austenitic stainless steel. Parting of tubes, small diameters and thin-walled parts. Cutting edge with positive rake used at low-to-medium feeds. The JS-type has sharp corners.
