Brand: Carver Clamps
Carver Clamps T550 Machine Vice Heavy Duty
SKU: CC-T550
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
| Carver Assembly Information | ||
|---|---|---|
| T550 is made up of the parts listed below | ||
| Part Number | Qty in Assembly | In-Stock |
| T550-1 | 1 | 2 |
| T550-2 | 1 | 2 |
Short Description
T550 (1)T550-1 (1)T550-2
Carver Part Number: C301153.
Reference Destaco Model Number: T550.
Carver Machine Vice Catalog
Carver Spare Parts Catalog
*This product has limited inventory. Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description

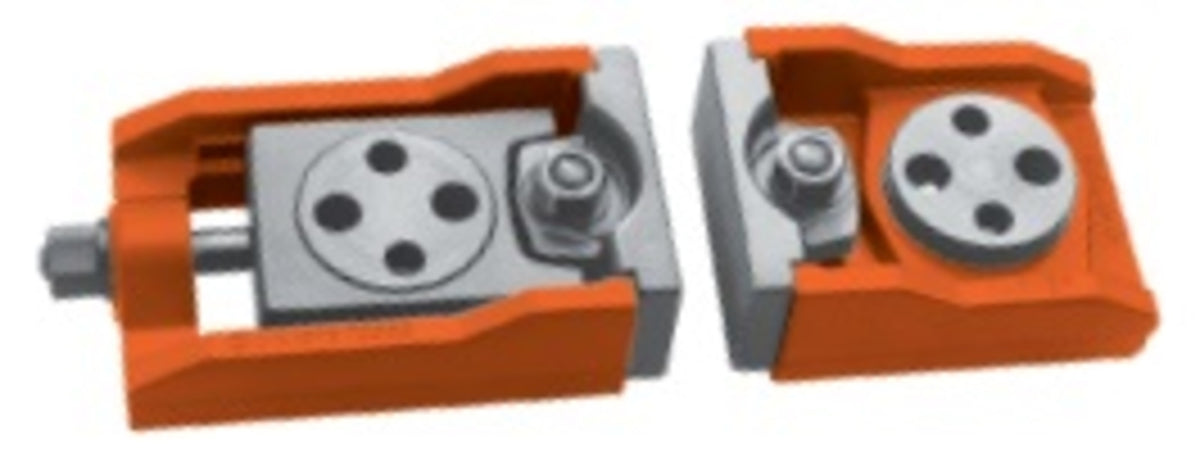

Carver Clamps T550 is their heavy-duty machine vise. The full assembly comes complete with both (1) T550-1 and (1) T550-2. Great for many workholding applications.
The versatile Carver Machine Vices are a must-have for any workshop. They excel in tasks that traditional vices cannot, making them the perfect solution for drilling, grinding, and planning. With its unique two-plane operation, these vices efficiently tighten on workpieces while also securely bringing them down onto the machine table. Capable of generating a maximum horizontal clamping force of 45kg, these heavy duty vices allow for full use of the machine bed.
Carver Part Number: C301153.
Reference Destaco Model Number: T550.
| Model No. | Part No. | Horizontal Clamping Force daN |
Downward Force daN |
Jaw Height mm (inch) |
Fixing Bolts mm (inch) |
Weight kg |
A mm |
A1 mm |
A2 mm |
B mm |
B1 mm |
B2 mm |
B3 MIN mm |
B3 MAX mm |
B4 mm |
S HOLE mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T550 | C301153 | 4500 | 1800 | 70 (2.1/2) | M16 (5/8) OR M20 (3/4) |
24 | 77 77 |
245 245 |
195 195 |
151 151 |
57 53 |
93.5 95.5 |
89.5 91.5 |
114.5 116.5 |
57 53 |
16.2 20.2 |
