Brand: Carver Clamps

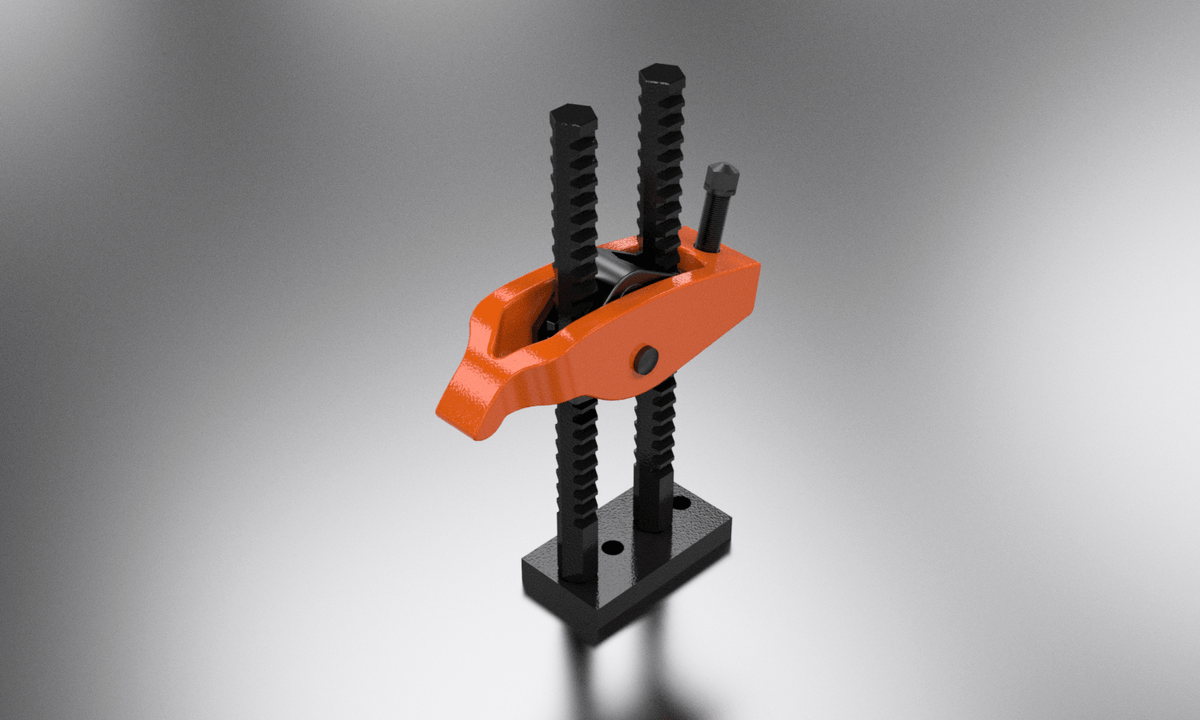

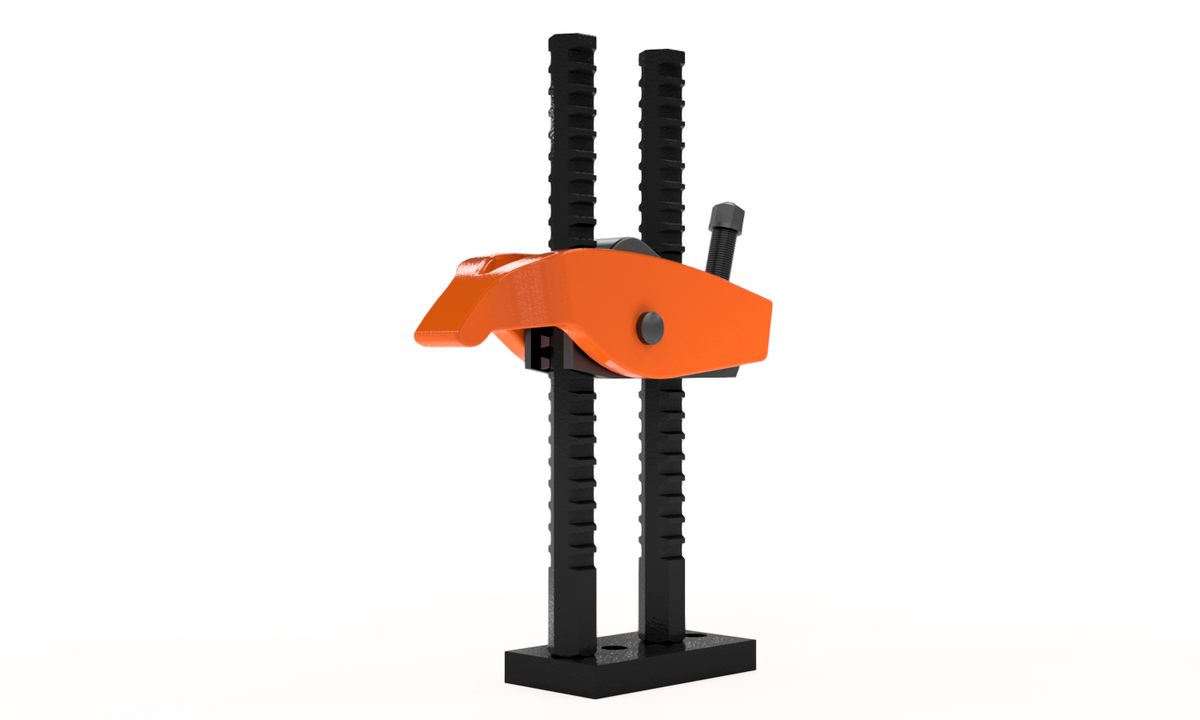

Carver Clamps T402-24 Heavy Duty 600mm T Slot Clamp
SKU: CC-T402-600
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
| Carver Assembly Information | ||
|---|---|---|
| T402-24 is made up of the parts listed below | ||
| Part Number | Qty in Assembly | In-Stock |
| T402-2 | 1 | 12 |
| T402-24-1 | 1 | 6 |
Short Description
(1) T402-2 (1) T402-24-1
Carver Part Number: C301220.
Reference Destaco Model Number: T402-24.
Carver T-Slot Clamps Catalog
Carver Spare Parts Catalog
*This product has limited inventory. Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Carver Clamps T402-24 t-slot clamp is their heavy-duty, standard reach line of t-slot clamps. It has a clamping height of roughly 24 inches and is great for many workholding applications. It comes with (1) T402-24-1 two-column base unit and (1) T402-2 head unit.
- 8160 lb. Capacity
- Multiple jaws can be mounted in different positions on the base
- 12-in maximum base height
| Maximum Holding Capacity (lb) | 8,161 |
| Throat Depth (in) | 2.68 |
| Working Height (in) | 23.62 |
| Product Type | T-Slot Style |
Carver Part Number: C301220.
Reference Destaco Model Number: T402-24.
| Model No. | Part No. | Alternative Model No. | Clamping Height | Reach mm (Inch) |
Weight kg |
A mm |
A1 mm |
B mm |
B1 mm |
B2 mm |
B3 mm |
B4 mm |
S | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm (Inch) | mm (Inch) | |||||||||||||
| T402-24 | C301220 | T402-600 | 300 (12) | 600 (24) | 10 | 44 (1.3/4) OR with base reversed 66 (2.5/8) |
76 | 19 A/F Hex | 19 | 249 | 71 | 140 | 54 | For M16 bolt |
