Brand: Carver Clamps

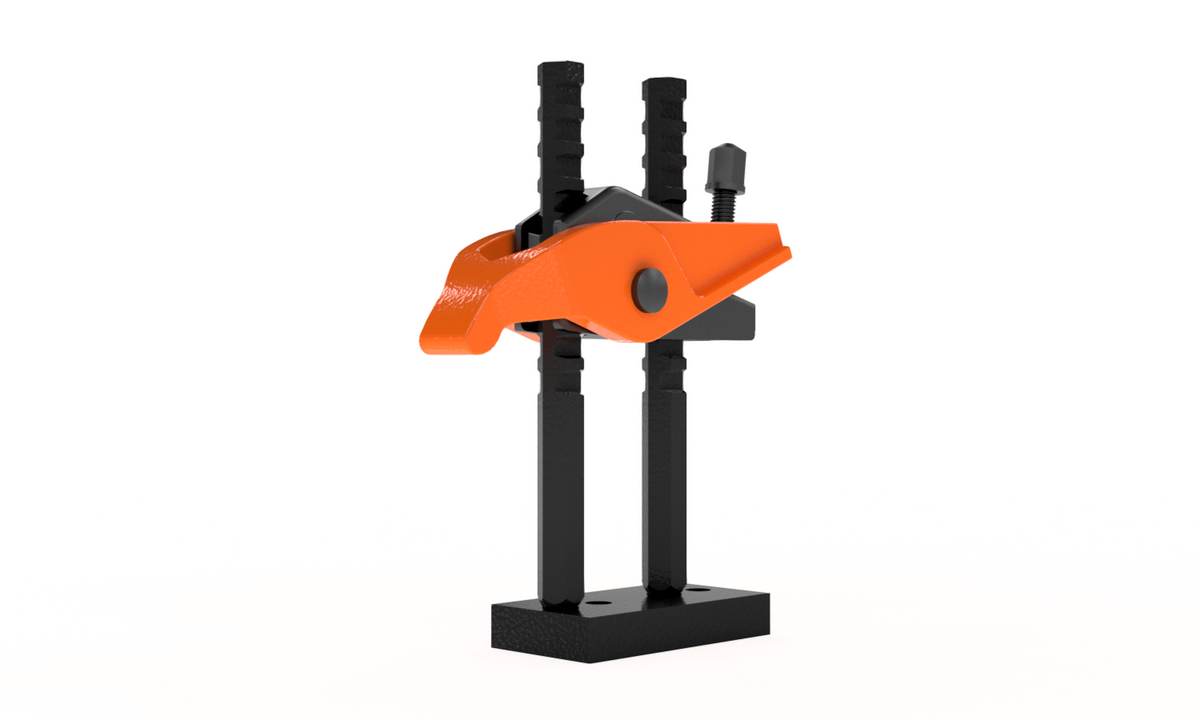

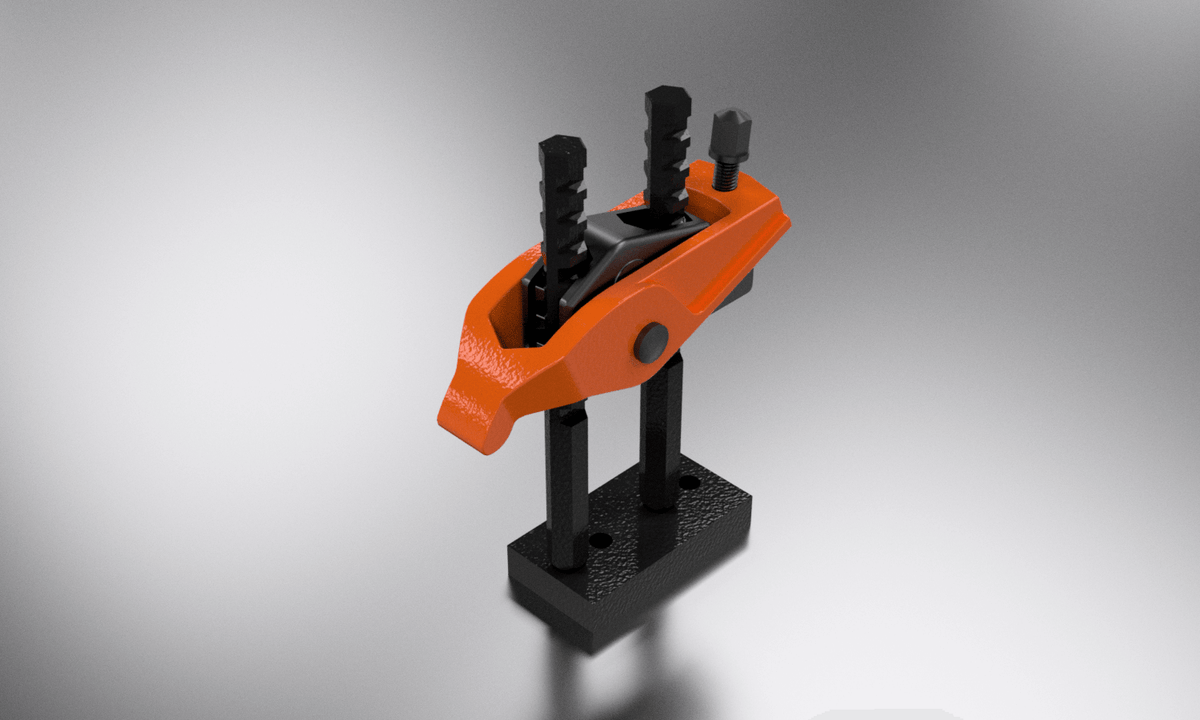

Carver Clamps T400-8 Standard Duty 200mm T Slot Clamp
SKU: CC-T400-200
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
| Carver Assembly Information | ||
|---|---|---|
| T400-8 is made up of the parts listed below | ||
| Part Number | Qty in Assembly | In-Stock |
| T400-2 | 1 | 47 |
| T400-8-1 | 1 | 20 |
Short Description
(1) T400-2 (1) T400-8-1
Carver Part Number: C301228.
Reference Destaco Model Number: T400-8.
Carver T-Slot Clamps Catalog
Carver Spare Parts Catalog
*This product has limited inventory. Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Carver Clamps T400-8 t-slot clamp is a standard-duty, standard reach clamp that utilizes a two-column base and clamping head unit. It provides roughly 8 inches of clamping height. Perfect for workholding and many workspaces.
- 5100 lb. Capacity
- Multiple jaws can be mounted in different positions on the base
- 4-in maximum base height
| Maximum Holding Capacity (lb) | 5,006 |
| Throat Depth (in) | 1.30 |
| Working Height (in) | 7.87 |
| Product Type | T-Slot Style |
Carver Part Number: C301228.
Reference Destaco Model Number: T400-8.
| Model No. | Part No. | Alternative Model No. | Clamping Height | Reach mm (Inch) |
Weight kg |
A mm |
A1 mm |
B mm |
B1 mm |
B2 mm |
B3 mm |
B4 mm |
S | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm (Inch) | mm (Inch) | |||||||||||||
| T400-8 | C301228 | T400-200 | 62 (2.1/2) | 200 (8) | 19 (3/4) OR with base reversed 35 (1.5/8) |
2.6 | 51 | 13 A/F Hex | 16 | 162 | 54 | 96.25 | 31.75 | For M12 bolt |
