Brand: Carver Clamps
Carver Clamps T400-4 Standard Duty 100mm T Slot Clamp
SKU: CC-T400-100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
| Carver Assembly Information | ||
|---|---|---|
| T400-4 is made up of the parts listed below | ||
| Part Number | Qty in Assembly | In-Stock |
| T400-2 | 1 | 47 |
| T400-4-1 | 1 | 8 |
Short Description
T400-4 Standard Duty 100mm T Slot Clamp
Carver Part Number: C301213.
Reference Destaco Number: T400-4.
Carver T-Slot Clamps Catalog
Carver Spare Parts Catalog
*This product has limited inventory. Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description

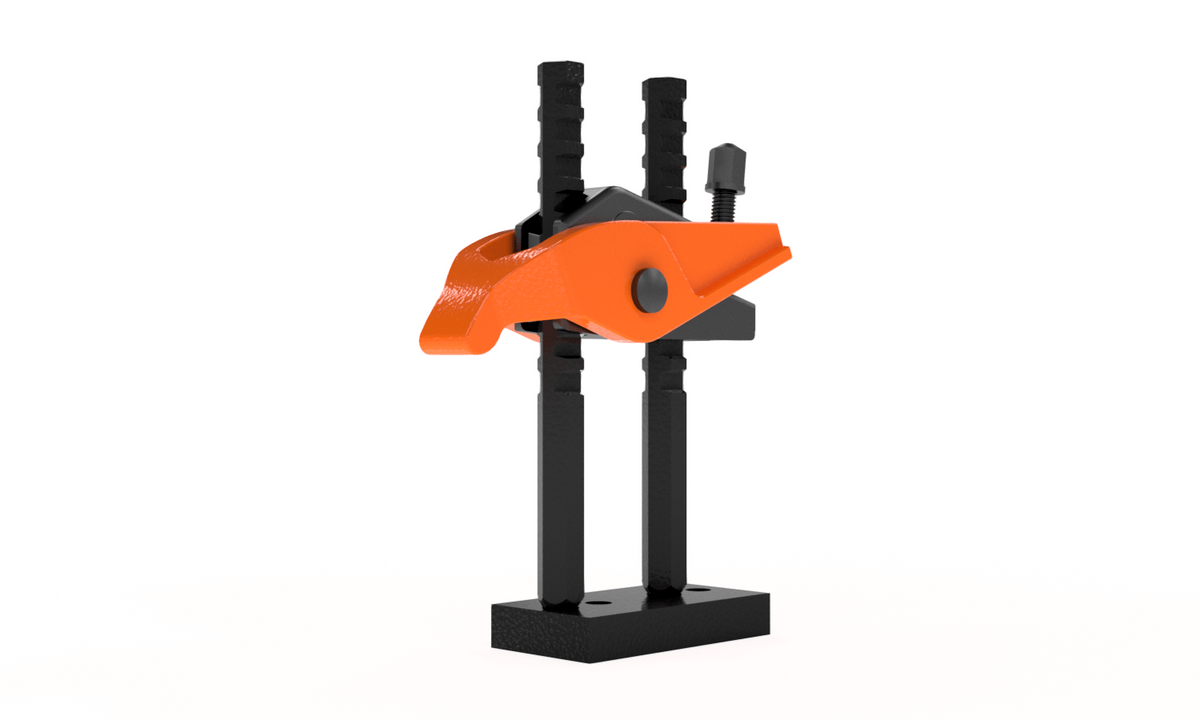

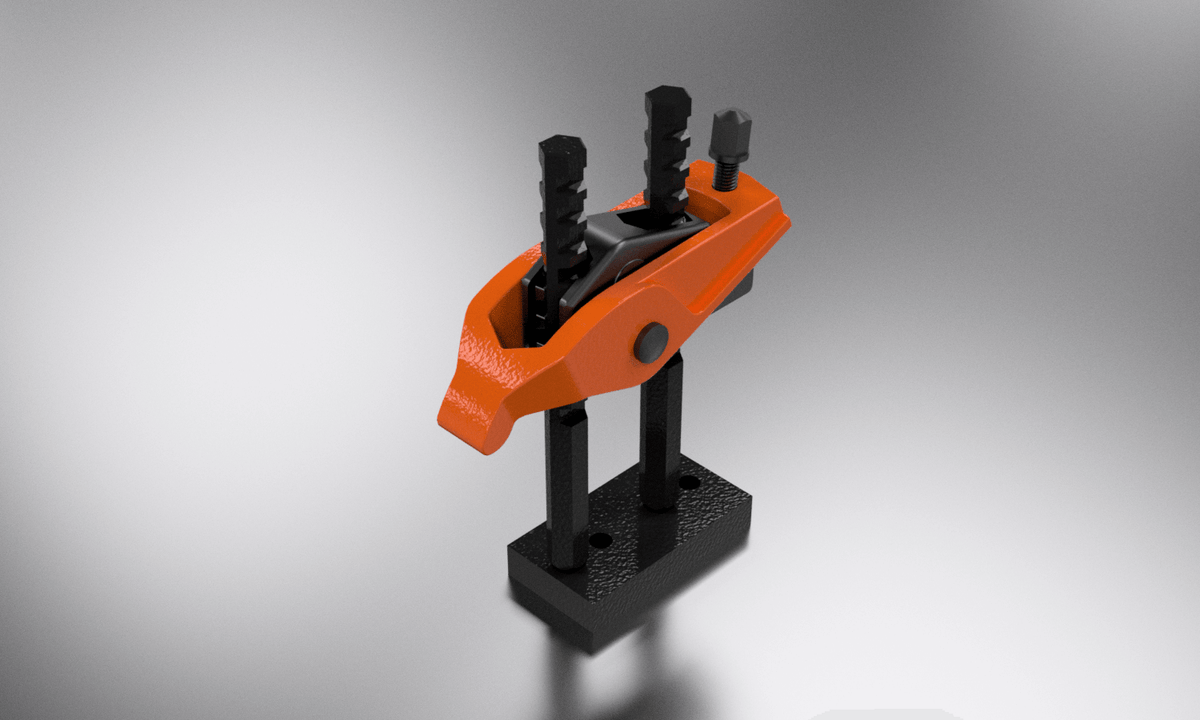

Carver Clamps T400-4 is part of their standard-duty, standard reach t-slot clamps. It comes with (1) T400-2 head unit and (1) T400-4-1 two-column base unit. Clamping height range is roughly up to 4 inches. Your best friend in clamping and workholding.
Carver Part Number: C301213.
Reference Destaco Number: T400-4.
| Model No. | Part No. | Alternative Model No. | Clamping Height | Reach mm (Inch) |
Weight kg |
A mm |
A1 mm |
B mm |
B1 mm |
B2 mm |
B3 mm |
B4 mm |
S | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm (Inch) | mm (Inch) | |||||||||||||
| T400-4 | C301213 | T400-100 | 25 (1) | 100 (4) | 19 (3/4) OR with base reversed 35 (1.5/8) |
2.3 | 51 | 13 A/F Hex | 16 | 162 | 54 | 96.25 | 31.75 | For M12 bolt |
