Brand: Carver Clamps

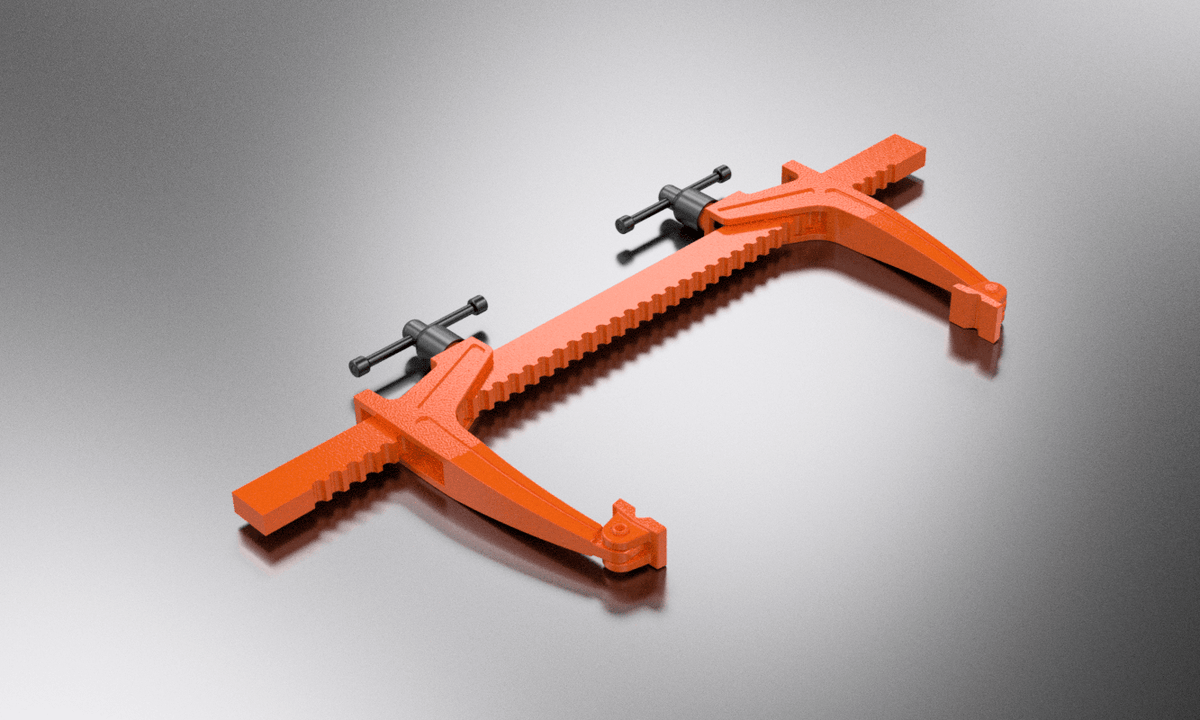

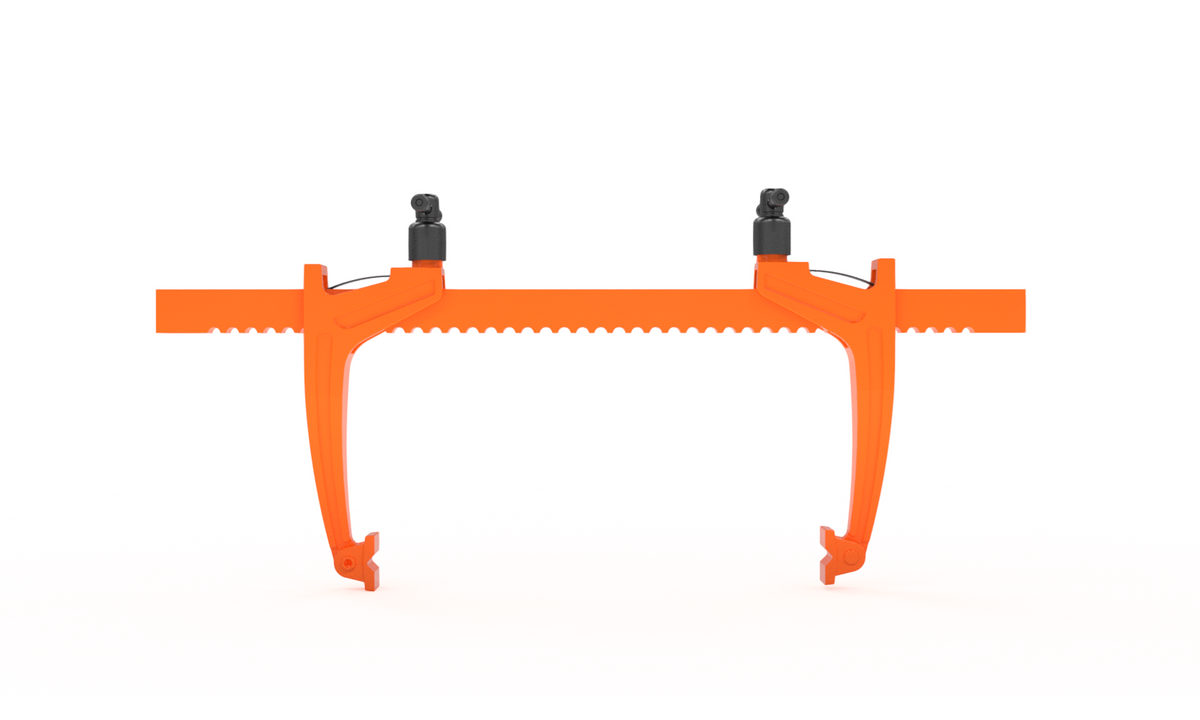

Carver Clamps T285-36 Medium Duty Long Reach 900mm Bar Clamp
SKU: CC-T285-900
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
| Carver Assembly Information | ||
|---|---|---|
| T285-36 is made up of the parts listed below | ||
| Part Number | Qty in Assembly | In-Stock |
| T285-2 | 2 | 0 |
| T290-36-1 | 1 | 20 |
Short Description
(1) T290-36-1 (2) T285-2
Carver Part Number: C301203.
Reference Destaco Model Number: T285-36.
Carver Bar Clamps Catalog
Carver Spare Parts Catalog
*This product has limited inventory. Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Carver's T285-36 is their medium-duty, long reach c-clamp style rack clamp. It utilizes (1) T290-36-1 bar with (2) T285-2 moveable jaws. Together, users get about 36 inches of usable clamping length.
- 2000 lb. Capacity
- Two moveable jaws can be reversed for a spreading motion
- Multiple jaws can be used on the bar for multi-positioning clamping
| Maximum Holding Capacity (lb) | 2,000 |
| Throat Depth (in) | 8.00 |
| Width Opening (in) | 36.00 |
| Product Type | Bar-Style |
Carver Part Number: C301203.
Reference Destaco Model Number: T285-36.
| Model No. | Part No. | Alternative Model No. | Capacity (S) mm (Inch) |
Reach (B1) mm (Inch) |
Weight kg | A mm | A1 mm | A2 mm | B mm | B2 mm | B3 mm | B4 mm | L mm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T285-36 | C301203 | T285-900 | 900 (36) | 200 (8) | 11.5 | 38 | 20 | 140 | 51 | 180 | 40 | 105 | 1070 |
