Brand: Carver Clamps

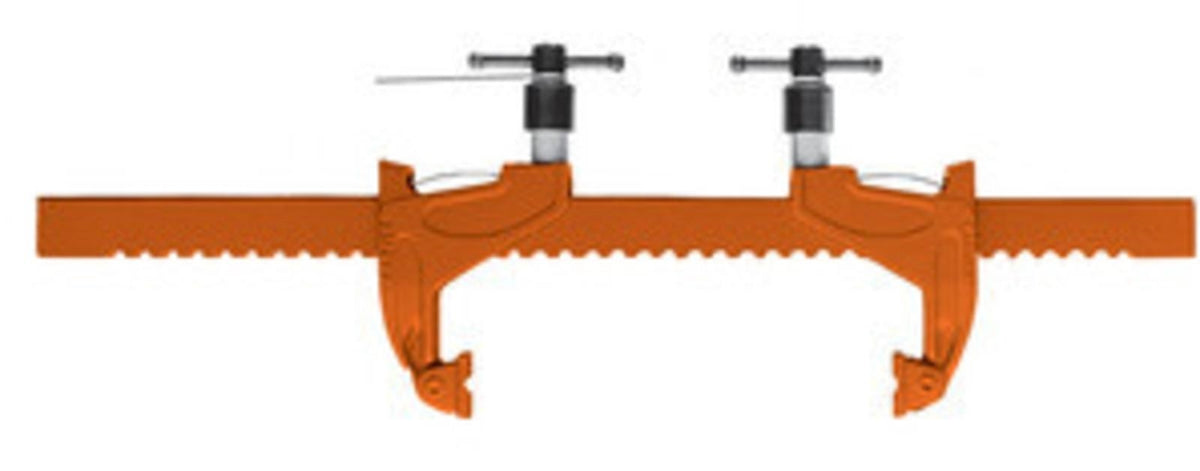

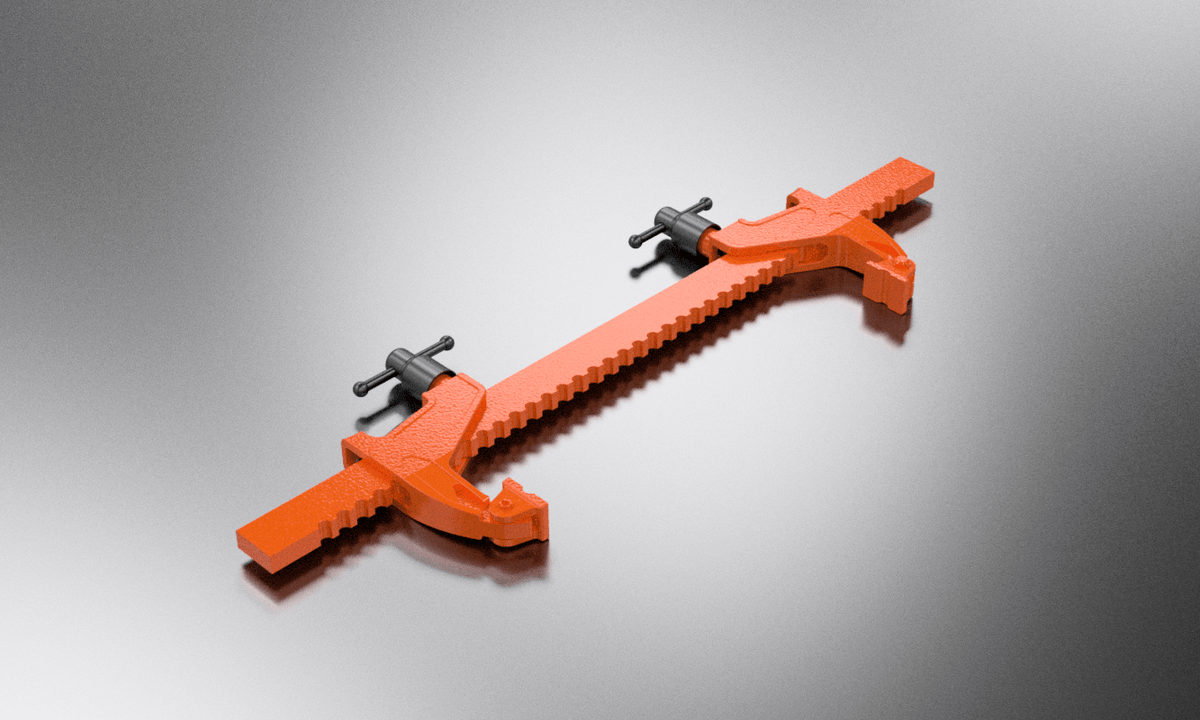

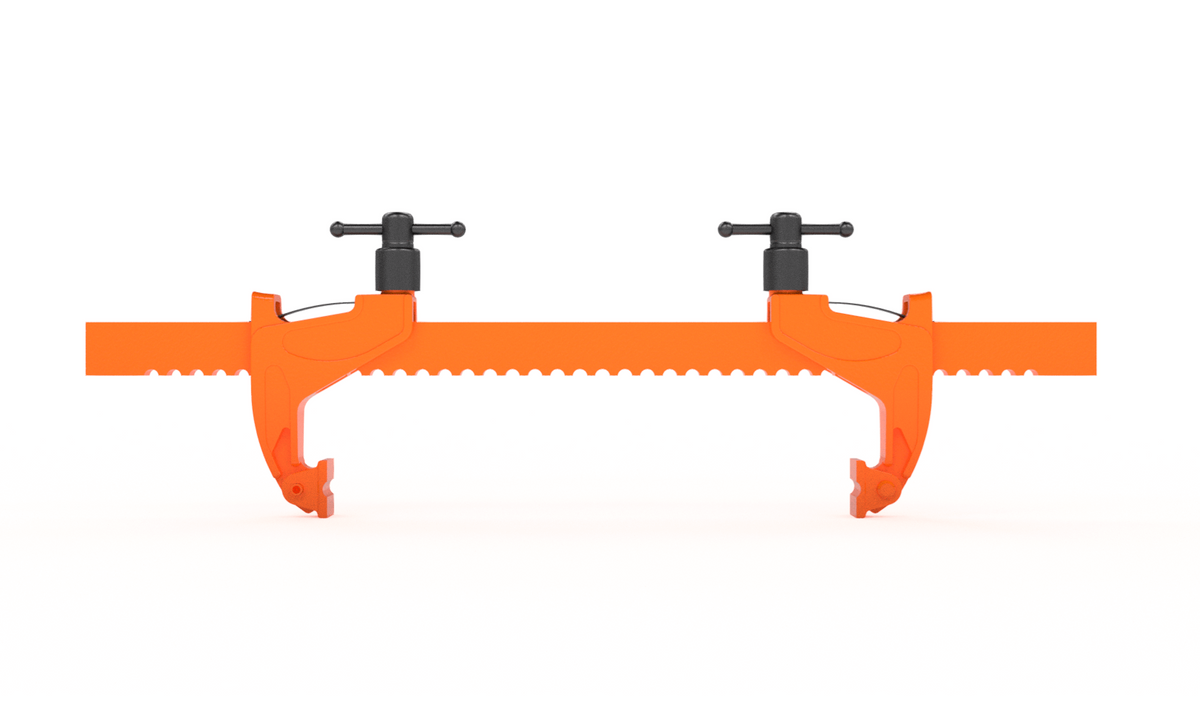

T186-36 Standard Duty 900mm Bar Clamp

SKU: CC-T186-900
MPN: T186-36

  • $300.66
    Unit price per
Shipping calculated at checkout.

Only 0 left!

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**


Carver Assembly Information
T186-36 is made up of the parts listed below
Part Number Qty in Assembly In-Stock
T186-2 2 27
T186-36-1 1 30

Short Description

(1) 186-36-1 (2) 186-2
Carver Part Number: C301180.
Reference Destaco Model Number: T186-36.

Carver Bar Clamps Catalog
Carver Spare Parts Catalog

*This product has limited inventory. Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

  • 2500 lb. Capacity
  • Two moveable jaws can be reversed for a spreading motion
  • Multiple jaws can be used on the bar for multi-positioning clamping
Maxmum Holding Capacity (lb) 2,500
Throat Depth (in) 2.38
Width Opening (in) 24.00
Product Type Bar-Style


Carver Part Number: C301180.
Reference Destaco Model Number: T186-36.

Carver Bar Clamps Catalog

Carver Spare Parts Catalog

T186-36 Standard Duty 900mm Bar Clamp

Model No. Part No. Alternative Model No. Capacity (S)
mm (Inch)
Reach (B1)
mm (Inch)
Weight kg A mm A1 mm A2 mm B mm B2 mm B3 mm B4 mm L mm
T186-24 C301179 T186-600 600 (24) 60 (2.3/8) 3.4 25 12 76 32 44 30 76 710
T186-36 C301180 T186-900 900 (36) 60 (2.3/8) 4.4 25 12 76 32 44 30 76 1020
T186-60 C301182 T186-1500 1500 (60) 60 (2.3/8) 5.8 25 12 76 32 44 30 76 1625
T186-84 C301184 T186-2100 2100 (84) 60 (2.3/8) 7.6 25 12 76 32 44 30 76 2235
T186-96 C301185 T186-2400 2400 (96) 60 (2.3/8) 8.8 25 12 76 32 44 30 76 2540
T321-24 C301187 T321-600 600 (24) 120 (4.3/4) 3.5 25 12 76 32 104 30 76 710
T321-36 C301188 T321-900 900 (36) 120 (4.3/4) 4.5 25 12 76 32 104 30 76 1020
T321-60 C301190 T321-1500 1500 (60) 120 (4.3/4) 5.9 25 12 76 32 104 30 76 1625
T321-84 C301192 T321-2100 2100 (84) 120 (4.3/4) 7.7 25 12 76 32 104 30 76 2235
T321-96 C301193 T321-2400 2400 (96) 120 (4.3/4) 8.9 25 12 76 32 104 30 76 2540
T290-36 C301195 T290-900 900 (36) 90 (3.1/2) 10.5 38 20 140 51 65 40 105 1070
T290-48 C301196 T290-1200 1200 (48) 90 (3.1/2) 12.1 38 20 140 51 65 40 105 1390
T290-60 C301197 T290-1500 1500 (60) 90 (3.1/2) 14 38 20 140 51 65 40 105 1690
T290-84 C301199 T290-2100 2100 (84) 90 (3.1/2) 18 38 20 140 51 65 40 105 2290
T285-36 C301203 T285-900 900 (36) 200 (8) 11.5 38 20 140 51 180 40 105 1070
T285-48 C301204 T285-1200 1200 (48) 200 (8) 13 38 20 140 51 180 40 105 1390
T285-60 C301205 T285-1500 1500 (60) 200 (8) 15 38 20 140 51 180 40 105 1690
T285-84 C301207 T285-2100 2100 (84) 200 (8) 19 38 20 140 51 180 40 105 2290
T257-84 C301210 T257-2100 2100 (84) 115 (4.1/2) 27.2 51 22 187 63.5 83 52 127 2335
T257-108 C301212 T257-2700 2700 (108) 115 (4.1/2) 32 51 22 187 63.5 83 52 127 2945
