*NAAMS Price Increase Coming June 1st. Lock-in Low Prices Now!*

Brand: Carver Clamps

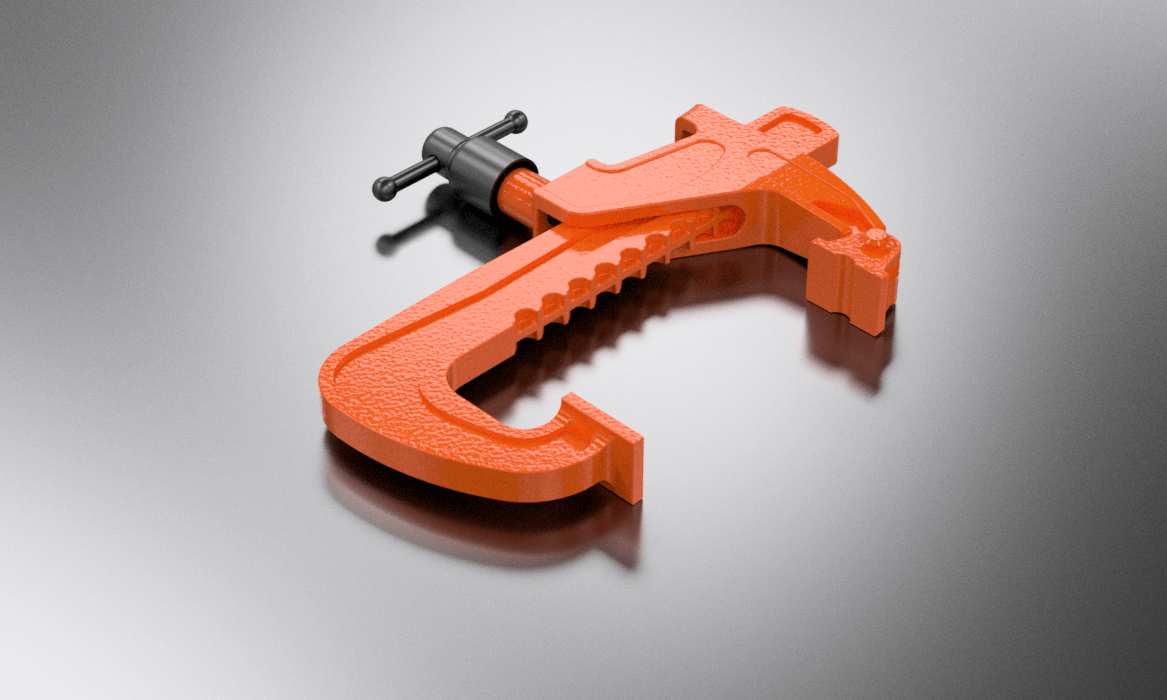

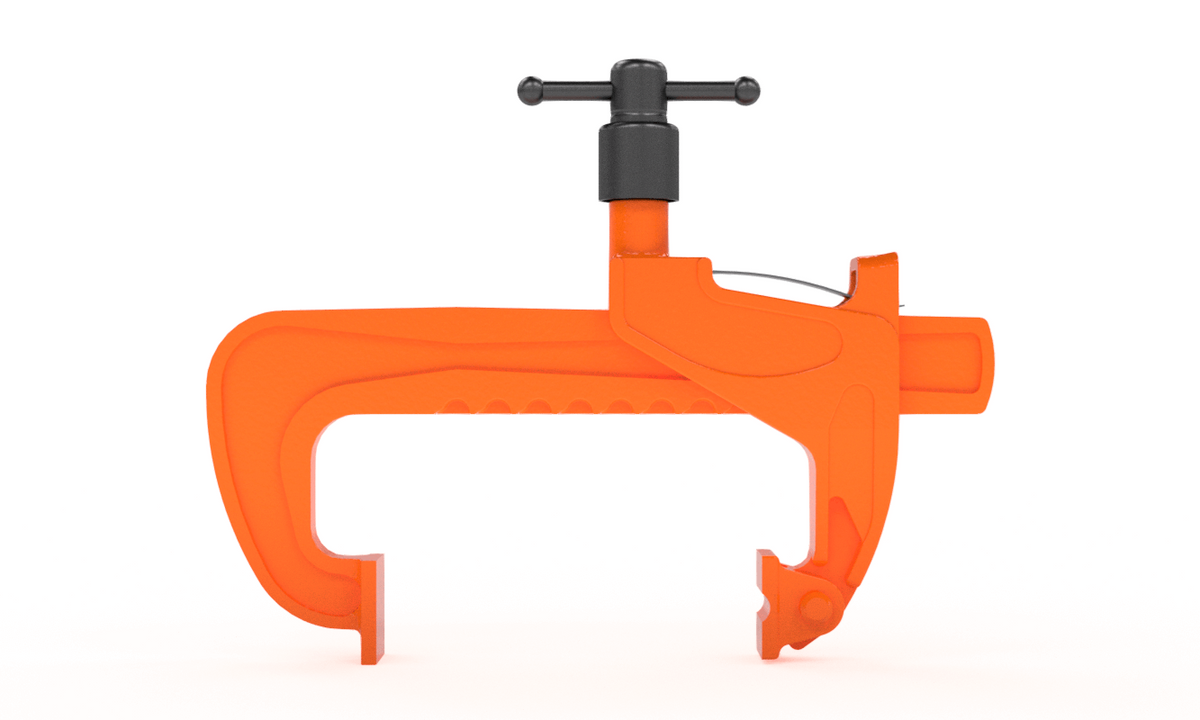

T186-20 Standard Duty 500mm Rack Clamp

SKU: CC-T186-500
MPN: T186-20

  • $187.74
    Unit price per
Shipping calculated at checkout.

Only 0 left!
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Carver Assembly Information
T186-20 is made up of the parts listed below
Part Number Qty in Assembly In-Stock
T186-2 1 82
T186-20-1 1 30

Short Description

(1) 186-20-1, (1) 186-2
Carver Part Number: C301009.
Reference Destaco Model Number: T186-20.

Carver Rack Clamps Catalog
Carver Spare Parts Catalog

*This product has limited inventory. Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

  • 2500 lb. Capacity
  • Supplied with one moveable jaw and a J-Bar
  • Clamping screw is completely shielded to repel weld spatter
Maxmum Holding Capacity (lb) 2,540
Throat Depth (in) 2.36
Width Opening (in) 11.81
Product Type C-Style Clamps


Carver Part Number: C301009.
Reference Destaco Model Number: T186-20.

Carver Rack Clamps Catalog

Carver Spare Parts Catalog

T186-20 Standard Duty 500mm Rack Clamp

Model No. Part No. Alternative Model No. Capacity (S)
mm (Inch)
Reach (B1)
mm (Inch)
Overall mm
(Inch)Length
Weight kg A mm A1 mm A2 mm B mm B2 mm B3 mm B4 mm L mm L1 mm
T186-6 C301003 T186-150 150 (6) 60 (2.3/8) 245 (9.5/8) 1.4 25 13 76 32 43 33 76 245 20
T186-12 C301005 T186-300 300 (12) 60 (2.3/8) 395 (15.1/2) 1.8 25 13 76 32 43 33 76 395 20
T186-20 C301009 T186-500 500 (20) 60 (2.3/8) 640 (25.1/8) 2.5 25 13 76 32 43 30 76 680 80
T186-30 C301012 T186-750 750 (30) 60 (2.3/8) 890 (35.1/8) 3.2 25 13 76 32 43 30 76 930 80
T321-10 C301101 T321-250 250 (10) 120 (4.3/4) 360 (14.1/8) 2 25 13 76 35 102 33.5 76 360 25
T321-24 C301313 T321-600 600 (24) 120 (4.3/4) 715 (28.1/8) 3.5 25 13 76 32 98 30 76 715 8
T290-9 C301046 T290-225 225 (9) 90 (3.1/2) 420 (16.1/2) 5.5 40 20 140 60 65 40 105 420 75
T290-18 C301049 T290-450 450 (18) 90 (3.1/2) 655 (25.3/4) 7 40 20 140 60 65 40 105 640 75
T290-30 C301052 T290-750 750 (30) 90 (3.1/2) 959 (37.3/4) 8.5 40 20 140 60 65 40 105 930 75
T290-40 C301055 T290-1000 1000 (40) 90 (3.1/2) 1216 (47.7/8) 10.5 40 20 140 60 65 40 105 1200 75
T285-9 C301035 T285-225 225 (9) 200 (8) 420 (16.1/2) 7.1 40 20 140 60 180 40 105 430 75
T285-18 C301037 T285-450 450 (18) 200 (8) 655 (25.3/4) 8.5 40 20 140 60 180 40 105 655 75
T285-30 C301039 T285-750 750 (30) 200 (8) 959 (37.3/4) 10 40 20 140 60 180 40 105 955 75
T285-40 C301041 T285-1000 1000 (40) 200 (8) 1216 (47.7/8) 11.5 40 20 140 60 180 40 105 1205 75
T257-6 C301172 T257-150 150 (6) 115 (4.1/2) 403 (15.7/8) 9.8 51 22 187 60 85 51 127 403 100
T257-12 C301173 T257-300 300 (12) 115 (4.1/2) 555 (21.7/8) 10.9 51 22 187 60 85 51 127 555 100
T257-18 C301174 T257-450 450 (18) 115 (4.1/2) 710 (27.3/4) 12.2 51 22 187 60 85 51 127 710 100
T257-24 C301175 T257-600 600 (24) 115 (4.1/2) 850 (33.1/2) 13.1 51 22 187 60 85 51 127 850 100
T257-36 C301176 T257-900 900 (36) 115 (4.1/2) 1165 (45.3/4) 15.8 51 22 187 60 85 51 127 1165 100
T257-54 C301177 T257-1350 1350 (54) 115 (4.1/2) 1615 (63.1/2) 19.1 51 22 187 60 85 51 127 1635 100
