Brand: Carver Clamps

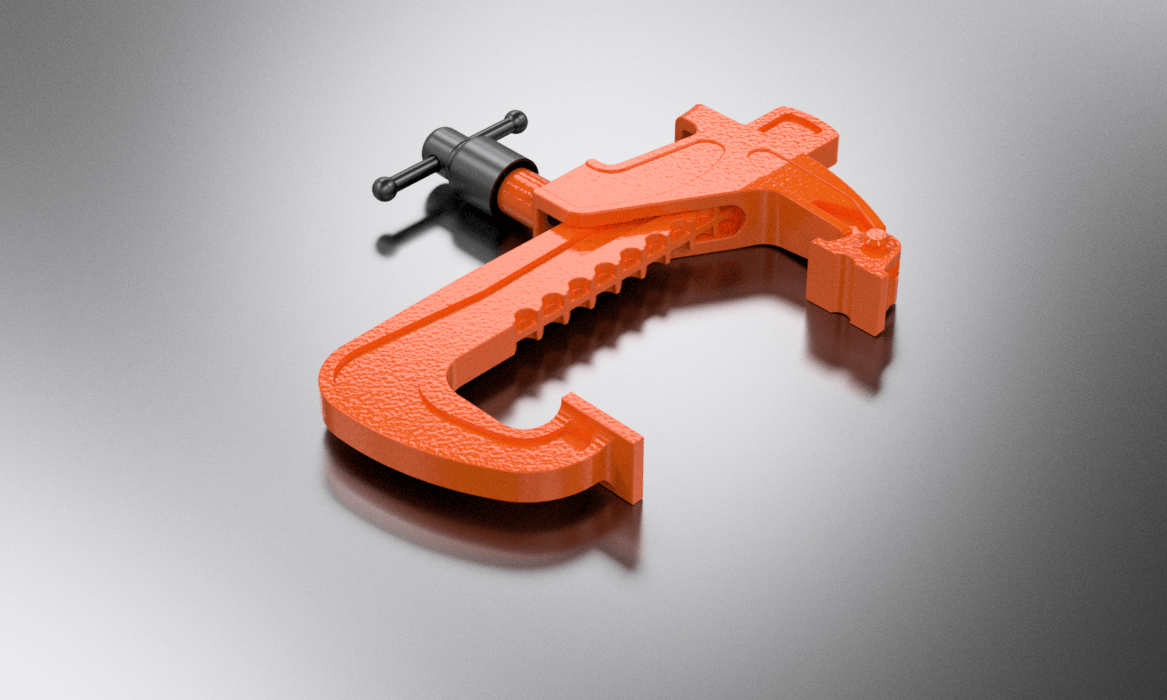

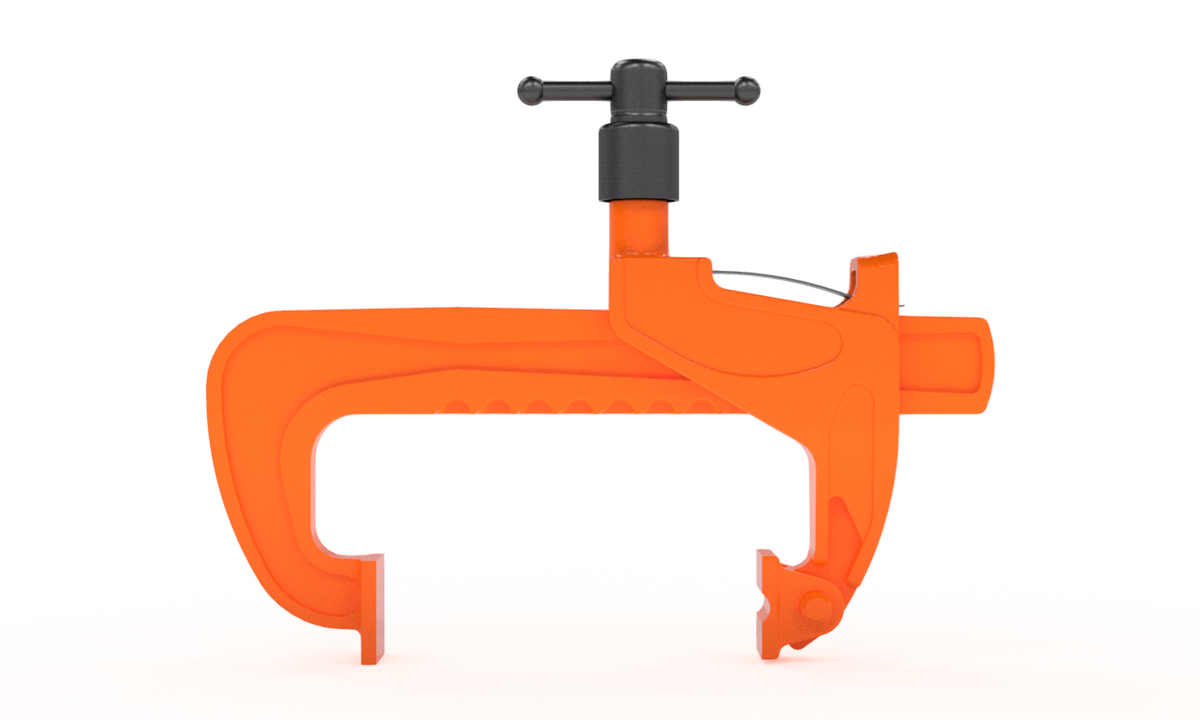

T186-12 Standard Duty 300mm Rack Clamp

SKU: CC-T186-300
MPN: T186-12

$188.60
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Carver Assembly Information
T186-12 is made up of the parts listed below
Part Number	Qty in Assembly	In-Stock
T186-12-1	1	97
T186-2	1	271

Short Description

T186-12 Standard Duty 300mm Rack Clamp
Carver Part Number: C301005.
Reference Destaco Number: T186-12.

Carver Rack Clamps Catalog
Carver Spare Parts Catalog

**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

T186-12 Standard Duty 300mm Rack Clamp
Carver Part Number: C301005.
Reference Destaco Number: T186-12.

Carver Rack Clamps Catalog

Carver Spare Parts Catalog

Model No.	Part No.	Alternative Model No.	Capacity (S) mm (Inch)	Reach (B1) mm (Inch)	Overall mm (Inch)Length	Weight kg	A mm	A1 mm	A2 mm	B mm	B2 mm	B3 mm	B4 mm	L mm	L1 mm
T186-6	C301003	T186-150	150 (6)	60 (2.3/8)	245 (9.5/8)	1.4	25	13	76	32	43	33	76	245	20
T186-12	C301005	T186-300	300 (12)	60 (2.3/8)	395 (15.1/2)	1.8	25	13	76	32	43	33	76	395	20
T186-20	C301009	T186-500	500 (20)	60 (2.3/8)	640 (25.1/8)	2.5	25	13	76	32	43	30	76	680	80
T186-30	C301012	T186-750	750 (30)	60 (2.3/8)	890 (35.1/8)	3.2	25	13	76	32	43	30	76	930	80
T321-10	C301101	T321-250	250 (10)	120 (4.3/4)	360 (14.1/8)	2	25	13	76	35	102	33.5	76	360	25
T321-24	C301313	T321-600	600 (24)	120 (4.3/4)	715 (28.1/8)	3.5	25	13	76	32	98	30	76	715	8
T290-9	C301046	T290-225	225 (9)	90 (3.1/2)	420 (16.1/2)	5.5	40	20	140	60	65	40	105	420	75
T290-18	C301049	T290-450	450 (18)	90 (3.1/2)	655 (25.3/4)	7	40	20	140	60	65	40	105	640	75
T290-30	C301052	T290-750	750 (30)	90 (3.1/2)	959 (37.3/4)	8.5	40	20	140	60	65	40	105	930	75
T290-40	C301055	T290-1000	1000 (40)	90 (3.1/2)	1216 (47.7/8)	10.5	40	20	140	60	65	40	105	1200	75
T285-9	C301035	T285-225	225 (9)	200 (8)	420 (16.1/2)	7.1	40	20	140	60	180	40	105	430	75
T285-18	C301037	T285-450	450 (18)	200 (8)	655 (25.3/4)	8.5	40	20	140	60	180	40	105	655	75
T285-30	C301039	T285-750	750 (30)	200 (8)	959 (37.3/4)	10	40	20	140	60	180	40	105	955	75
T285-40	C301041	T285-1000	1000 (40)	200 (8)	1216 (47.7/8)	11.5	40	20	140	60	180	40	105	1205	75
T257-6	C301172	T257-150	150 (6)	115 (4.1/2)	403 (15.7/8)	9.8	51	22	187	60	85	51	127	403	100
T257-12	C301173	T257-300	300 (12)	115 (4.1/2)	555 (21.7/8)	10.9	51	22	187	60	85	51	127	555	100
T257-18	C301174	T257-450	450 (18)	115 (4.1/2)	710 (27.3/4)	12.2	51	22	187	60	85	51	127	710	100
T257-24	C301175	T257-600	600 (24)	115 (4.1/2)	850 (33.1/2)	13.1	51	22	187	60	85	51	127	850	100
T257-36	C301176	T257-900	900 (36)	115 (4.1/2)	1165 (45.3/4)	15.8	51	22	187	60	85	51	127	1165	100
T257-54	C301177	T257-1350	1350 (54)	115 (4.1/2)	1615 (63.1/2)	19.1	51	22	187	60	85	51	127	1635	100
