Brand: Iscar
Iscar EH3102939 MM S-A-L2.58-W.625-T08
SKU: FTS-EH3102939
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3102939 MM S-A-L2.58-W.625-T08Full Description
| Connection Thread Nominal Size Workpiece Side (THSZWS) | T08 | Functional Length (LF) | 1.627" |
| Connection Diameter Machine Side (DCONMS) | 5/8" | Weight of Item (WT) | 0.2 Lbs |
| Overall Length (OAL) | 2.58" | Measurement Type | Inch |
| Coolant Supply Property (CSP) | External | Rotational Speed Maximum (RPMX) | 60000 Rev/min |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
| Body Diameter (BD) | 0.48" | Connection Code Machine Side (CCMS) | Weldon |
Family Description

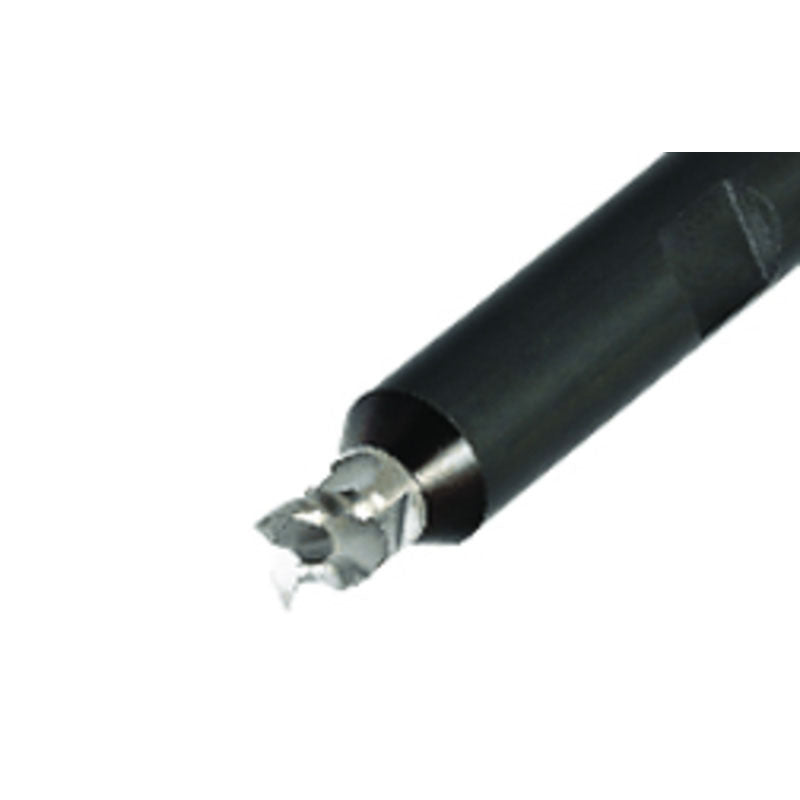

MULTI-MASTER shanks for interchangeable milling heads.
For adaptation click on "More Info" Do not apply lubricant to the threaded connection
