Brand: Iscar

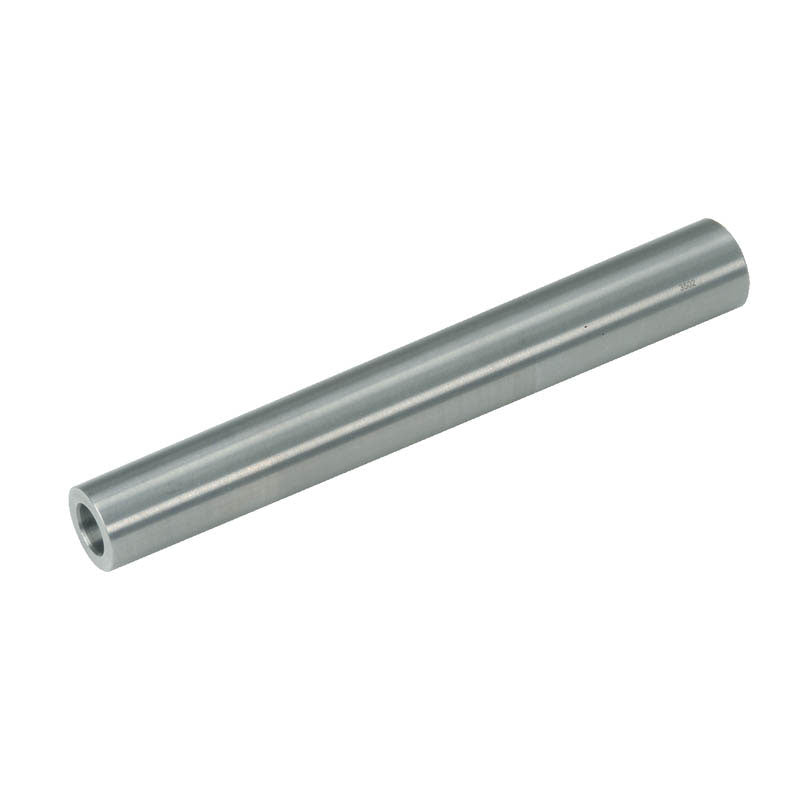

Iscar EH3105828 MM S-A-H004-ER16-T08
SKU: FTS-EH3105828
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 3105828 MM S-A-H004-ER16-T08Full Description
| Connection Thread Nominal Size Workpiece Side (THSZWS) | T08 | Body Diameter (BD) | 0.457" |
| Overall Length (OAL) | 1.24" | Weight of Item (WT) | 0.09 Lbs |
| Shank Size (SS) | ER16 | Measurement Type | Inch |
| Body Length Maximum (LBX) | 0.16" | Body Material | Steel |
| Tool Type | Spring Collets |
Family Description
Shanks carrying MULTI-MASTER solid carbide heads with an ER collet adaptation
Do not apply lubricant to the threaded connection. For adaptation click on "More Info". When a rigid ER collet is assembled in an ER holder, the actual protrud ing length of the holder becomes shorter by .0787" for ER20 and by .118" fo r ER25/ER32
