Brand: DESTACO

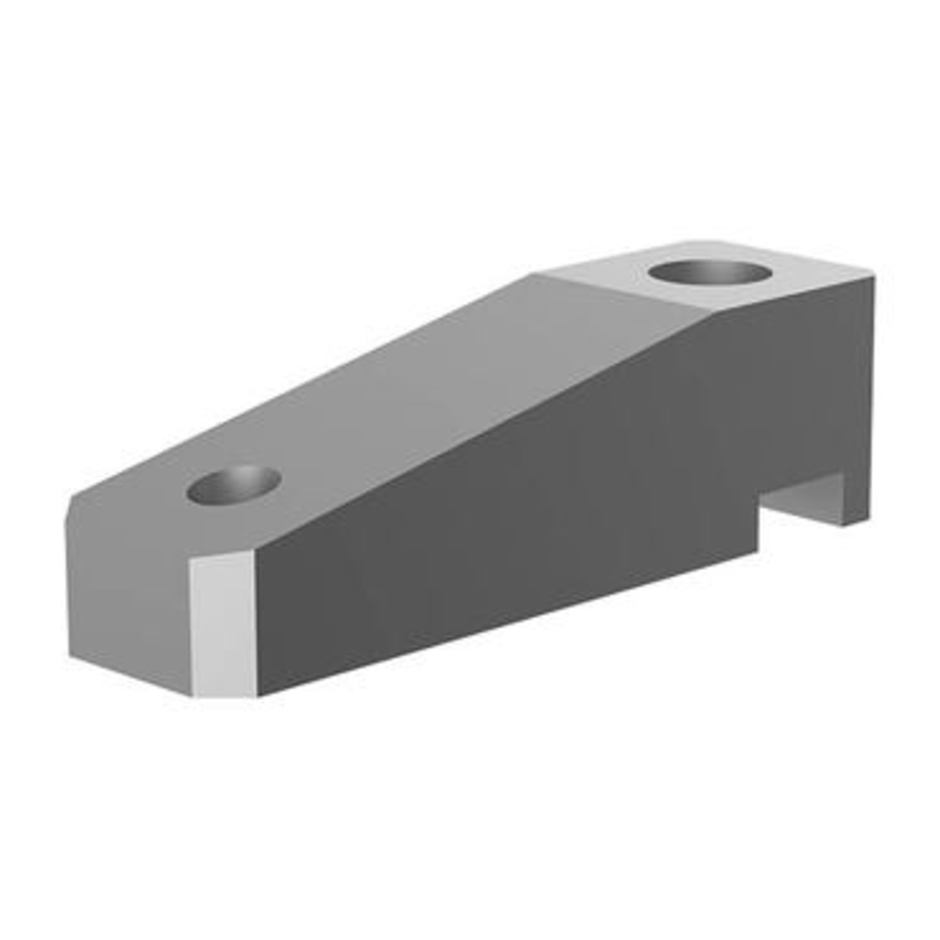

DESTACO 9522150 STANDARD CLAMP ARM FOR 9522-2

SKU: DE-STA-CO-9522150
MPN: 9522150

$38.65
Unit price per
Save $1.87

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Short Description

DESTACO 9522150 STANDARD CLAMP ARM FOR 9522-2. Destaco’s 9500 Series of pneumatic swing clamps are designed for assembly, welding, and light machining applications in tight spaces. These models feature a rod weld cover to protect the rod throughout the entire stroke. They can also be mounted to any face with an optional side flange mounting kit and are designed to be switch ready for sensors.
*In-stock Destaco products will be shipped within 3 business days. Average lead times may vary from 2 to 12 weeks, in some cases longer.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

Full Description

DESTACO 9522150 STANDARD CLAMP ARM FOR 9522-2

Destaco€™s 9500 Series of pneumatic swing clamps are designed for assembly, welding, and light machining applications in tight spaces. These models feature a rod weld cover to protect the rod throughout the entire stroke. They can also be mounted to any face with an optional side flange mounting kit and are designed to be switch ready for sensors.

Arm Length is measured from center of piston rod to clamping point.
Arms are positioned in 90° increments to the piston rod
Refer to Datasheet for information on custom arm fabrication.
For use with 9500-2 Series only

Used With Model/Series	9522-2
Used With Model/Series	9522-2
Weight (lb)	0.07
Arm Length (in)	1.77
Arm (Arm)	Single
