Brand: HALDER

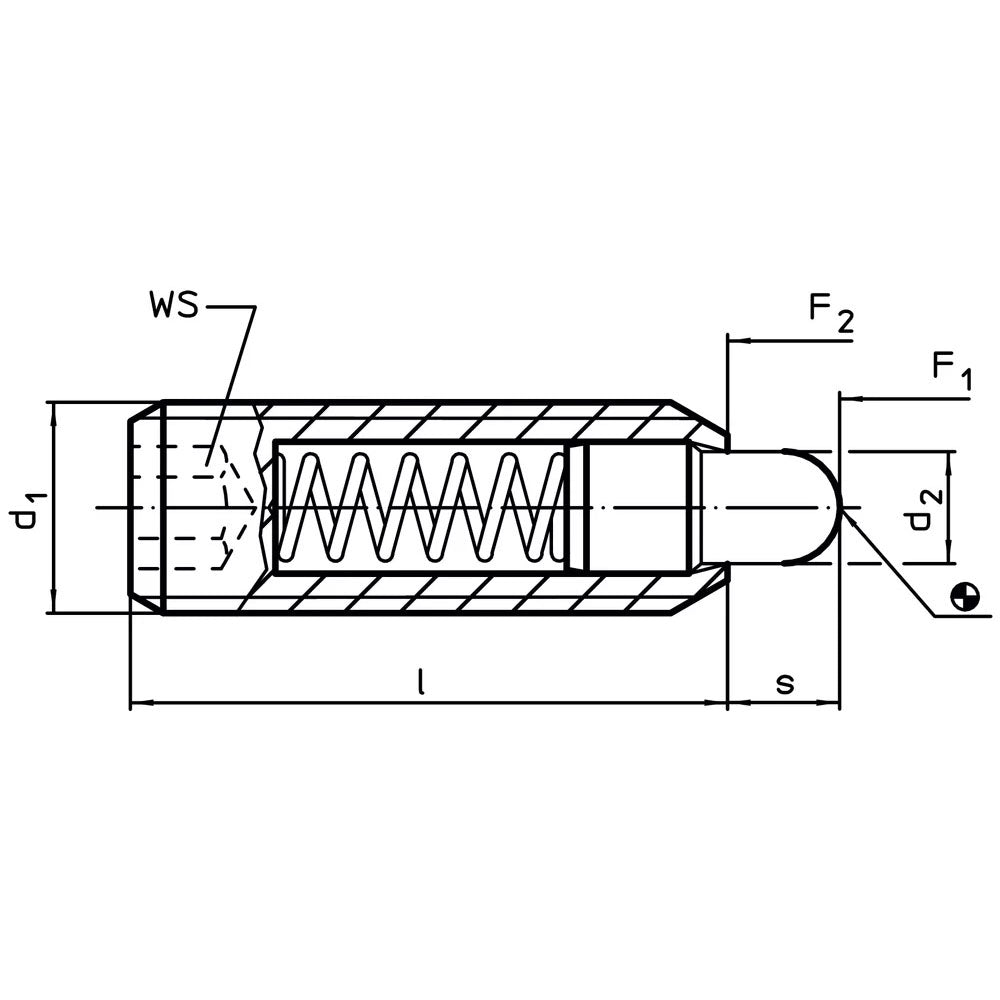

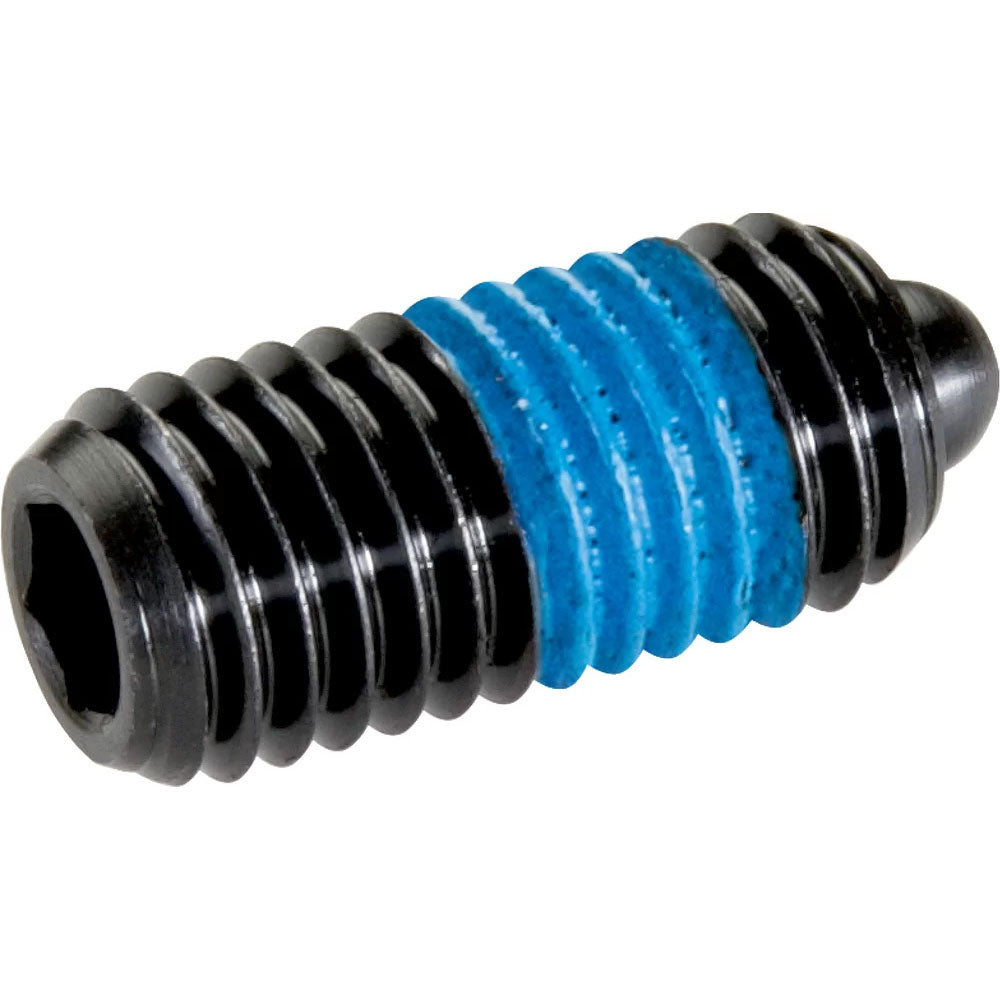

Spring Plunger with pin and internal hexagon - INCH - 2B030.0236

SKU: EH-2B030.0236
MPN: 2B030.0236

$3.43
Unit price per
Save $0.18

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Spring Plungers, with pin and internal hexagon - INCH/free cutting steel, standard spring load | d1=8-32 / Thread Lock | 2B030.0236
Halder 2B030.0236 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

To be used for positioning, indexing, locking, latching as well as ejecting.

Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.

Material

Free cutting steel, hardened, blackened

Body

Free cutting steel, blackened

Spring

Stainless steel

Characteristic

Standard spring load: no marking

Notes

Special types on request.

Spring range and forces are precisely tested.

This product is manufactured in INCH dimensions.

References

A conversion table can be found in the technical data following these product information pages.

Thread lock: Polyamide spot coating (for details please refer to the technical data pages).

Halder 2B030.0236 Data Sheet
