Brand: HALDER

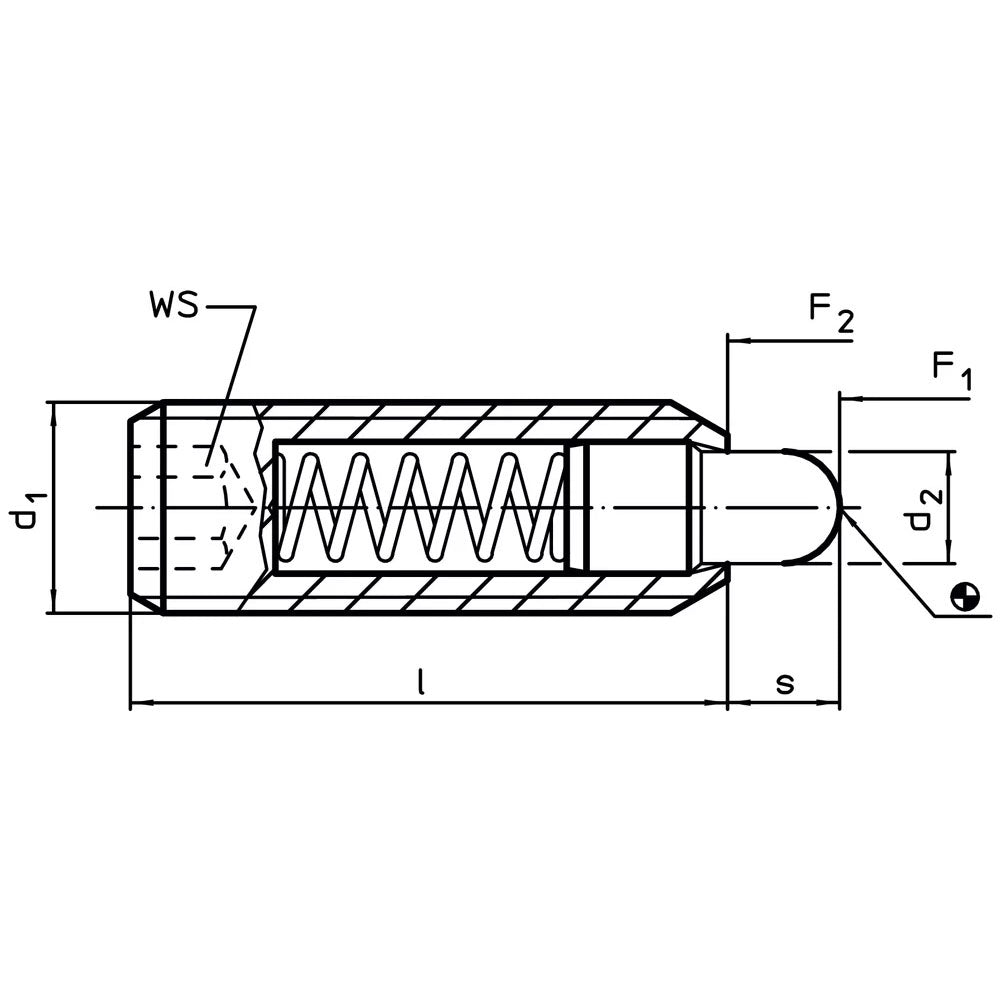

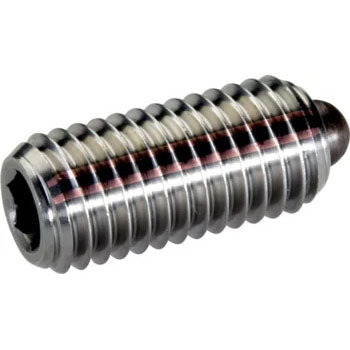

Spring Plunger with pin and internal hexagon - INCH - 2B030.0180
SKU: EH-2B030.0180
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Spring Plungers, with pin and internal hexagon - INCH/stainless steel, heavy spring load | d1=1/2-13 | 2B030.0180Halder 2B030.0180 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
To be used for positioning, indexing, locking, latching as well as ejecting.
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Material
Pin
- Stainless steel 1.4305 (ASTM-A-582)
Body
- Stainless steel 1.4305 (ASTM-A-582)
Spring
- Stainless steel
Characteristic
Heavy spring load: marked with two lines
Notes
Special types on request.
Spring range and forces are precisely tested.
- This product is manufactured in INCH dimensions.
References
A conversion table can be found in the technical data following these product information pages.
Thread lock: Polyamide spot coating (for details please refer to the technical data pages).
