Brand: HALDER

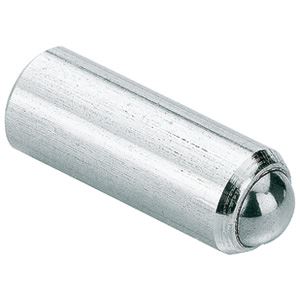

SPRING PLUNGERS - 22080.0317
SKU: EH-22080.0317
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Spring Plungers, smooth, without collar/body and ball from stainless steel | d1=4.5 mm | 22080.0317Halder 22080.0317 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Material
Body
- Stainless steel 1.4305
Ball
- Stainless steel, hardened
Spring
- Stainless steel
Assembly
The locating hole has to be adapted to each individual application case. We recommend an F8 size location hole for easy assembly and a H9 size when tight fit is required.
Notes
Special types on request.
Spring range and forces are precisely tested.
References
Calculation of indexing resistance, see details at the start of the section.
