Brand: HALDER

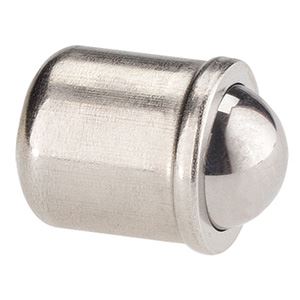

SPRING PLUNGERS - 22080.0204
SKU: EH-22080.0204
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Spring Plungers, smooth, with collar and ball/body from brass, ball from stainless steel, standard spring load | d1=4 mm | 22080.0204Halder 22080.0204 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Material
Body
- Brass
Ball
- Stainless steel, hardened
Spring
- Stainless steel
Assembly
A tolerance of H7 is recommended for the locating hole of d1.
Characteristic
Standard spring load: no marking
Notes
Special types on request.
Spring range and forces are precisely tested.
References
Calculation of indexing resistance, see details at the start of the section.
Version with higher spring forces see "EH 22080. Spring Plungers, smooth, long, with collar and ball".
