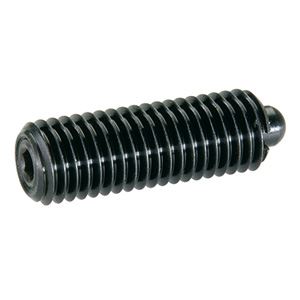

SPRING PLUNGERS - 22060.0450

Brand: HALDER

SPRING PLUNGERS - 22060.0450

SKU: EH-22060.0450
MPN: 22060.045

Only 0 left!
Please Email SALES For Pricing

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Halder product orders*

Short Description

Spring Plungers, with internal hexagon and seal/stainless steel, standard spring load | d1=M10 | 22060.0450
Halder 22060.0450 Data Sheet

*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*

Full Description

Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.

By means of the seal, liquid cannot penetrate into the spring plunger.

Material

Pin

  • Stainless steel 1.4305

Seal

  • NBR

Body

  • Stainless steel 1.4305

Spring

  • Stainless steel

Assembly

Spring plungers can be mounted and removed by means of the slot or internal hexagon.

Please use a special assembly tool for mounting with a slot (pin side).

For the pin-sided assembly of the version d1=M8 it is necessary to use the assembly tool for the version d1=M10 (Art. No. 22060.0810).

Characteristic

Standard spring load: no marking

Notes

Special types on request.

Spring range and forces are precisely tested.

References

Compared to EH 22060., i.e. "no seal", there are deviations in dimension l, spring load and temperature range.

Thread lock on request, please refer to appendix - Technical Data -

Halder 22060.0450 Data Sheet
