Brand: HALDER

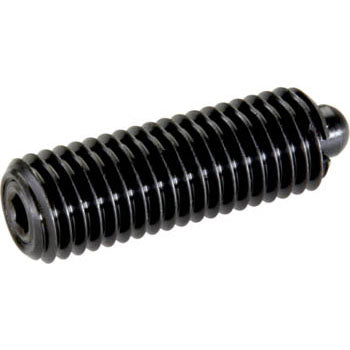

Spring Plunger with internal hexagon and seal - 22060.0052
SKU: EH-22060.0052
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Spring Plungers, with internal hexagon and seal/free cutting steel, standard spring load | d1=M12 | 22060.0052Halder 22060.0052 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
By means of the seal, liquid cannot penetrate into the spring plunger.
Material
Pin
- Free cutting steel, hardened, blackened
Seal
- NBR
Body
- Free cutting steel, blackened
Spring
- Stainless steel
Assembly
Spring plungers can be mounted and removed by means of the slot or internal hexagon.
Please use a special assembly tool for mounting with a slot (pin side).
For the pin-sided assembly of the version d1=M8 it is necessary to use the assembly tool for the version d1=M10 (Art. No. 22060.0810).
Characteristic
Standard spring load: no marking
Notes
Special types on request.
Spring range and forces are precisely tested.
References
Compared to EH 22060., i.e. "no seal", there are deviations in dimension l, spring load and temperature range.
Thread lock on request, please refer to appendix - Technical Data -
