Brand: HALDER

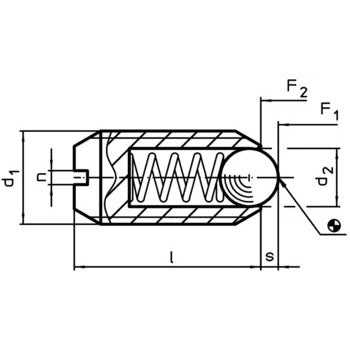

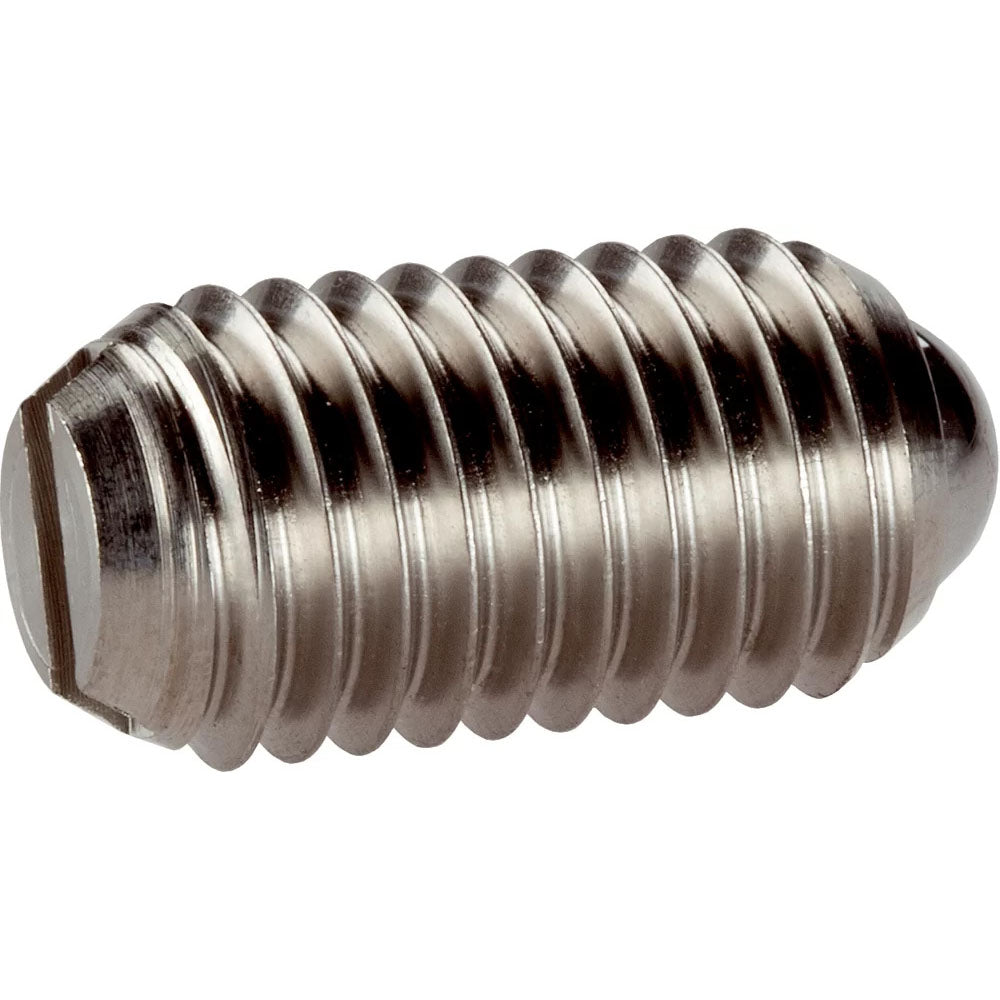

Spring Plunger with ball and slot - 22050.0424
SKU: EH-22050.0424
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Spring Plungers, with ball and slot/stainless steel, standard spring load | d1=M24 | 22050.0424Halder 22050.0424 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.
Material
Body
- Stainless steel 1.4305
Ball
- Stainless steel, hardened
Spring
- Stainless steel
Characteristic
Standard spring load: no marking
Notes
Special types on request.
Spring range and forces are precisely tested.
References
Thread lock on request, please refer to appendix - Technical Data -
Calculation of indexing resistance, see details at the start of the section.
