Brand: Iscar

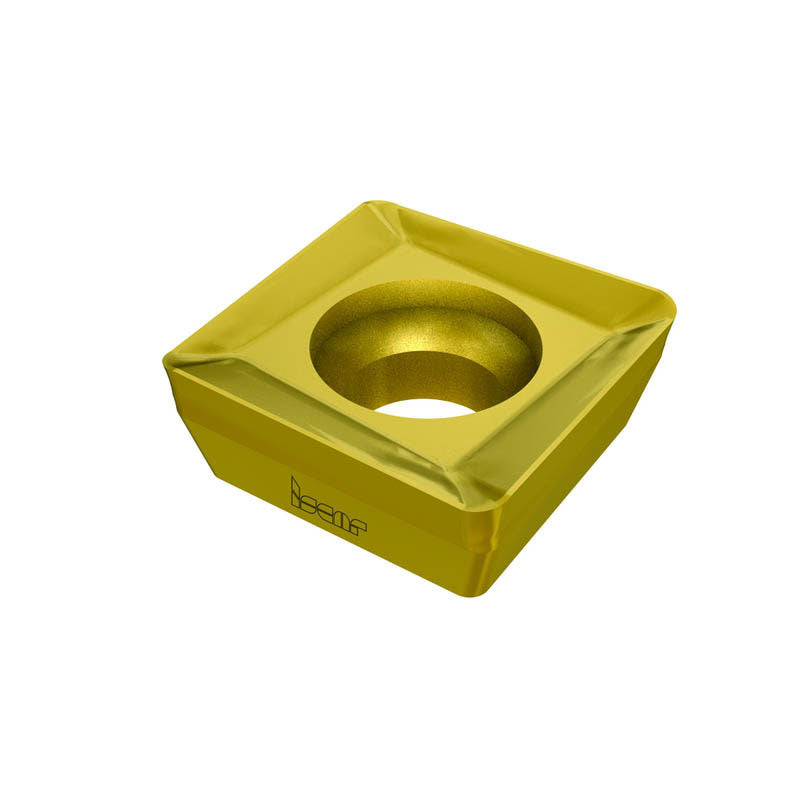

Iscar EH5603696 SPMT 100408TR-HQ-M IC910
SKU: FTS-EH5603696
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5603696 SPMT 100408TR-HQ-M IC910Full Description
| Applicable Material | | Steel | Cast Iron | | Shape | 90° Square |
| Application | | Drill Mill | Facing | Milling Inserts | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0079 "/tooth |
| Insert Length (INSL) | 0.402" | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315" | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.167" | Minimum Feed per Tooth (fz(min)) | 0.0032 "/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | IC910 |
Family Description
HELIQUAD Square positive inserts for right-hand tools for general use.
