Brand: Iscar

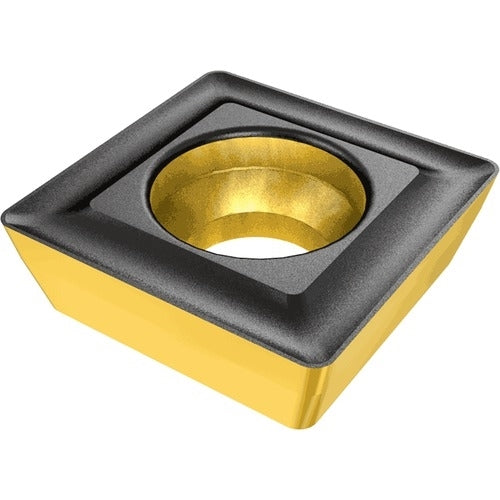

Iscar EH5510344 SOGT 09T306-W IC808
SKU: FTS-EH5510344
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5510344 SOGT 09T306-W IC808Full Description
| Insert Thickness (S) | 0.15" | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 0.354" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.024" | Tool Type | Indexable drilling inserts |
| Shape | 90° Square | Measurement Type | Inch |
| Coating | TiAlN+AlTiN+TiN | Cutting Direction (HAND) | Neutral |
| Grade | IC808 | Body Material | Carbide |
| Application | | Drilling | |
Family Description
Precision ground inserts with DT general use chipformer and a wiper for MNC drills, for general applications
