Brand: Iscar

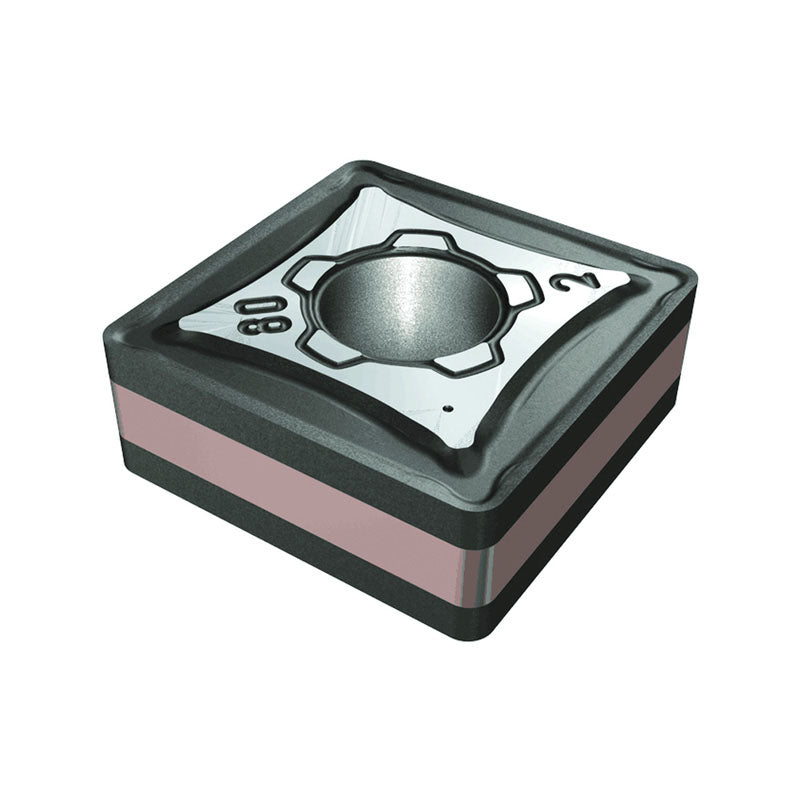

Iscar EH5560560 SNMG 332-M3M IC6025
SKU: FTS-EH5560560
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5560560 SNMG 332-M3M IC6025Full Description
| Applicable Material | | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Insert | Int. Square 75° Approach | | Fixing Hole Diameter (D1) | 0.15" |
| Insert Style | SNMG | Min D.O.C. | 0.02" |
| Corner Radius (RE) | 0.0315" | Depth of Cut Maximum (APMX) | 0.177" |
| Insert Size | 332 | Min. Turning Feed (ft(min)) | 0.0059 "/rev |
| Cutting Edge Length (L) | 3/8" | Max. Turning Feed (ft(max)) | 0.0197 "/rev |
| Insert Thickness (S) | 0.187" | Chip Breaker Type | M3M |
| Inscribed Circle Diameter (IC) | 3/8" | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | 90° Square |
| Coating | TiCN+Al2O3+TiN | Series/List # | SNMG 332-M3M |
| Grade | IC6025 | Body Material | Carbide |
Family Description
Double-sided, square inserts with a strong cutting edge, positive chipformer, free chip flow for semi-roughing and roughing applications.
For dimensions and tolerances, see more info.
