Brand: Dorian

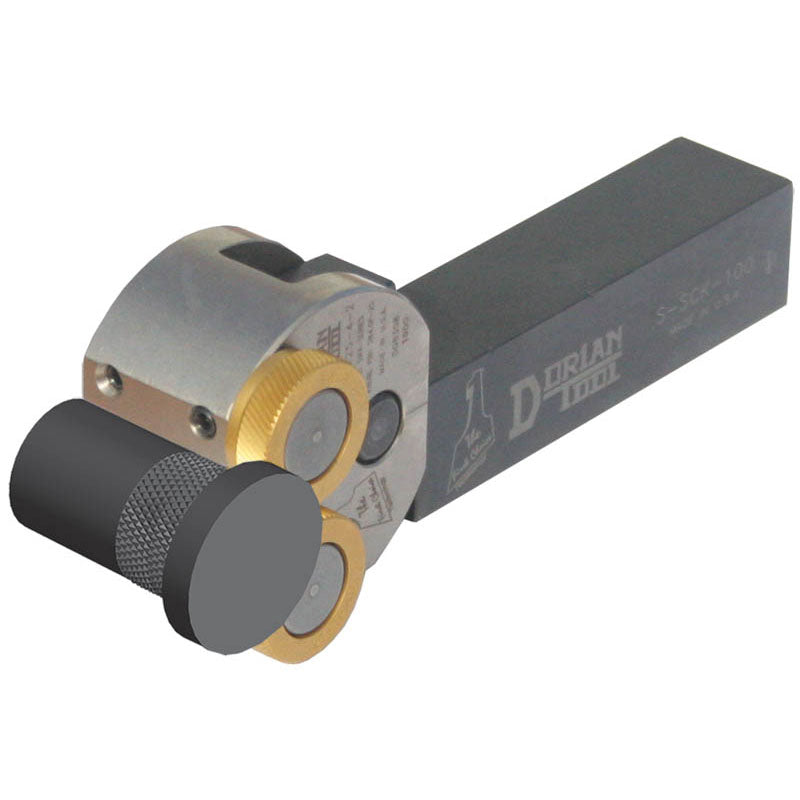

Dorian GG35SSCK754 Shlder Self-Center 1x3/8x1/2 Wheel Size-3/4 x 3/4 SH
SKU: FTS-GG35SSCK754
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian 22240 Shlder Self-Center 1x3/8x1/2 Wheel Size-3/4 x 3/4 SHFull Description
| Style | SSCK - Shoulder Self Centering | Tool Type | SSCK |
| Shank Size (SS) | 3/4" | Model Number | SSCK-75-DW-4 |
| Includes | Set of Beveled diagonal high speed TiN coated knurl wheels, 30 TPI*, 25 TPI** | Series/List # | 22240 |
| Master Insert Identification (MIID) | Knurl Wheel 1" x 3/8" x 1/2" | PackSize | 1 |
| Knurl Wheel Size | SW4 | Remarks | • SSCK • Specifically designed for CNC lathe • Designed to knurl against a square shoulder • Precision square shank with preset center height • Twin knurl wheels for straight and diamond pattern • Knurl wheels are mounted between the thrust washers to ensure a smooth and even rotation of the knurls while knurling is performed • Supplied with Cobalt TIC/N Coated SW series knurl wheels • Self-centering knurling head for a precise alignment to the working part. |
| Knurl Pin Set Number | GG35SW40P2S |
• SSCK • Specifically designed for CNC lathe • Designed to knurl against a square shoulder • Precision square shank with preset center height • Twin knurl wheels for straight and diamond pattern • Knurl wheels are mounted between the thrust washers to ensure a smooth and even rotation of the knurls while knurling is performed • Supplied with Cobalt TIC/N Coated SW series knurl wheels • Self-centering knurling head for a precise alignment to the working part.
