Brand: Dorian

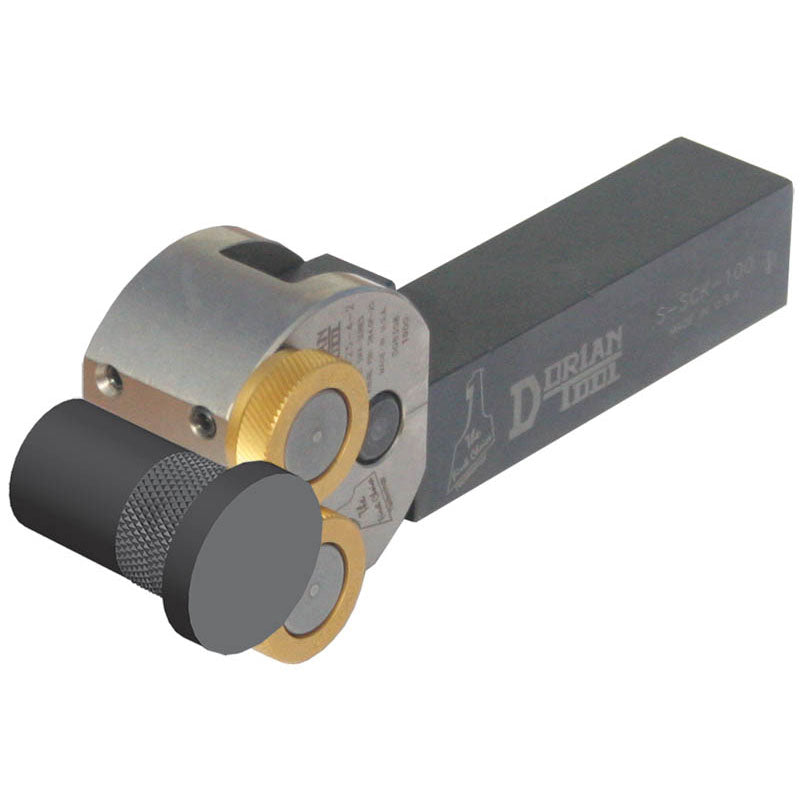

Dorian GG35SSCK1004 Shlder Self-Center 1 x 3/8 x 1/2 Wheel Size-1 x 1 SH

SKU: FTS-GG35SSCK1004
MPN: 22250

$625.80
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*This is a Berkshire eSupply item*
Please note, Berkshire has many challenges with delivery dates, discontinued items, etc. Unfortunately, this is beyond our control and we cannot be held responsible for such. Any and all cancelled orders due to circumstances beyond Freers control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.

Short Description

Dorian 73310122250 Shlder Self-Center 1 x 3/8 x 1/2 Wheel Size-1 x 1 SH

Full Description

Style	SSCK - Shoulder Self Centering	Tool Type	SSCK
Shank Size (SS)	1"	Model Number	SSCK-100-DW-4
Includes	Set of Beveled diagonal high speed TiN coated knurl wheels, 30 TPI, 25 TPI*	Series/List #	22250
Master Insert Identification (MIID)	Knurl Wheel 1" x 3/8" x 1/2"	PackSize	1
Knurl Wheel Size	SW4	Remarks	• SSCK • Specifically designed for CNC lathe • Designed to knurl against a square shoulder • Precision square shank with preset center height • Twin knurl wheels for straight and diamond pattern • Knurl wheels are mounted between the thrust washers to ensure a smooth and even rotation of the knurls while knurling is performed • Supplied with Cobalt TIC/N Coated SW series knurl wheels • Self-centering knurling head for a precise alignment to the working part.
Knurl Pin Set Number	GG35SW40P2S

• SSCK • Specifically designed for CNC lathe • Designed to knurl against a square shoulder • Precision square shank with preset center height • Twin knurl wheels for straight and diamond pattern • Knurl wheels are mounted between the thrust washers to ensure a smooth and even rotation of the knurls while knurling is performed • Supplied with Cobalt TIC/N Coated SW series knurl wheels • Self-centering knurling head for a precise alignment to the working part.
