Brand: Tungaloy

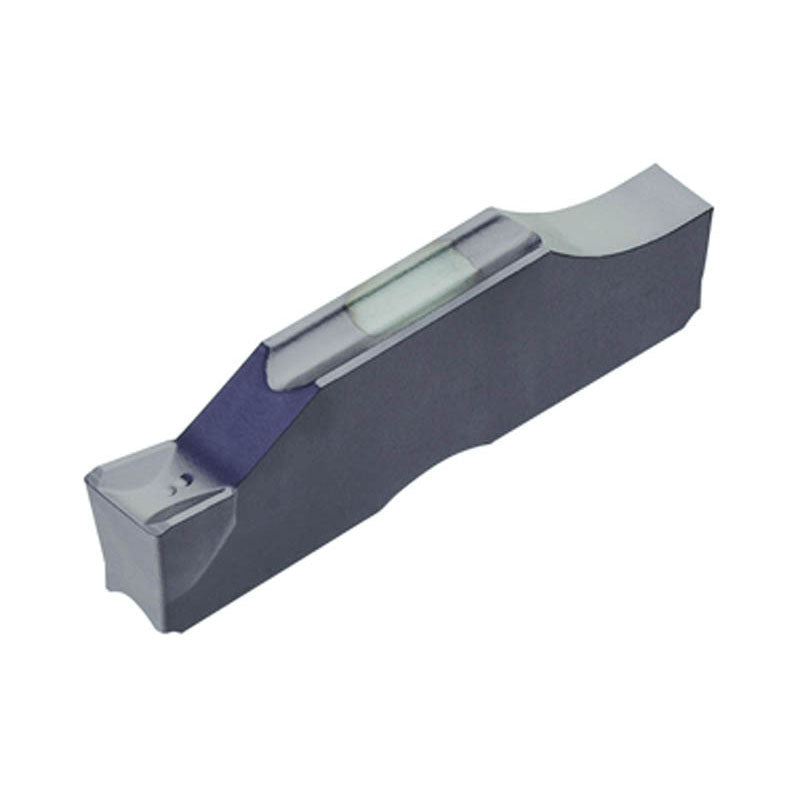

Tungaloy TG556860363 SGM4-030 AH725
SKU: FTS-TG556860363
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Tungaloy 6860363 SGM4-030 AH725Full Description
| Cutting Width (CW) | 0.157" | Application | | Inserts | |
| Corner Radius (RE) | 0.0118" | Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Insert Length (INSL) | 0.787" | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Face Turn-Groove Inserts |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH725 | Body Material | Carbide |
Family Description
Single-ended inserts, 1st choice for external grooving & parting, tolerance of insert width +/-0.002 inch
For "Max workpiece diameter", click on "More Info".
