Brand: Iscar
Iscar EH5603413 SEKT 43AFR-HM
SKU: FTS-EH5603413
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5603413 SEKT 43AFR-HMFull Description
| Applicable Material | Steel|Stainless Steel|Cast Iron | Grade | IC4050 |
| Cutting Edge Length (L) | 0.508" | Shape | 90° Square |
| Depth of Cut Maximum (APMX) | 0.252" | Maximum Feed per Tooth (fz(max)) | 0.0059 inch/tooth |
| Insert Thickness (S) | 0.203" | Cutting Edge Material | Carbide |
| Wiper Edge Length (BS) | 0.085" | Tool Type | Single sided Inserts |
| Coating | TiCN|Al2O3|TiN | Minimum Feed per Tooth (fz(min)) | 0.0039 inch/tooth |
Family Description

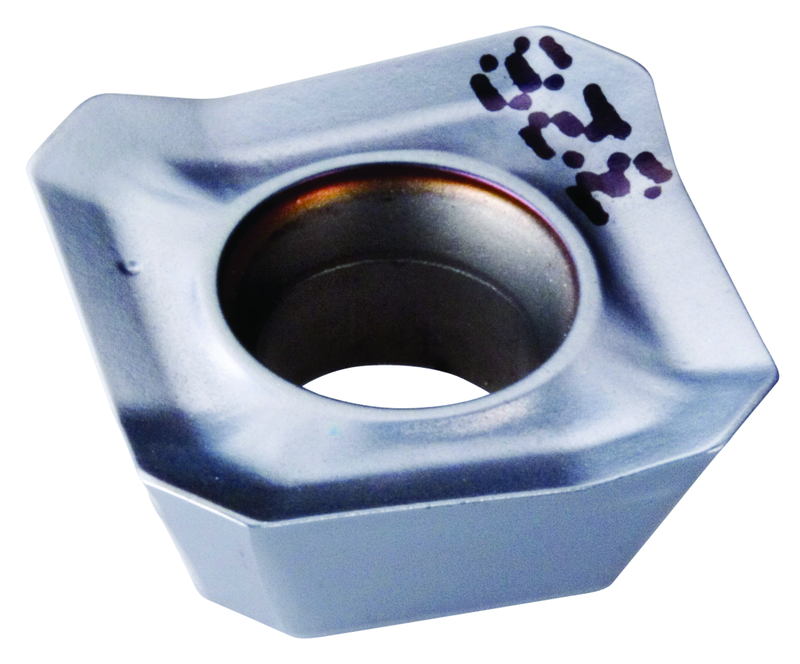

Super positive square milling inserts for 45° finishing andmedium machining of soft materials.
