Brand: Iscar

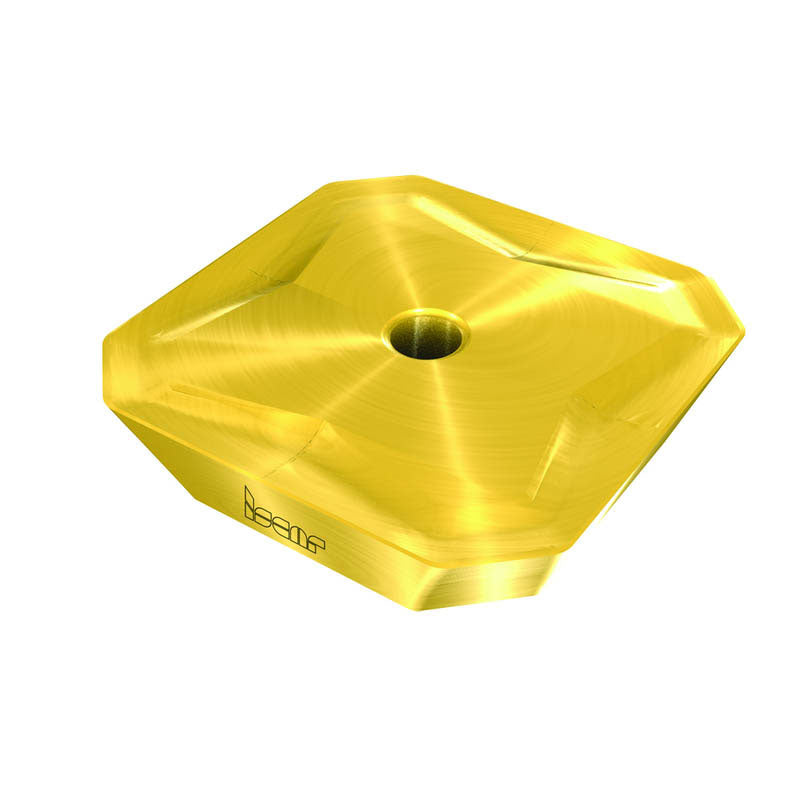

Iscar EH5600509 SEKR 42AFTR-HS IC250
SKU: FTS-EH5600509
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5600509 SEKR 42AFTR-HS IC250Full Description
| Applicable Material | | Steel | Stainless Steel | | Shape | 90° Square |
| Application | | Facing | Milling Inserts | Plunging & Recessing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0098 "/tooth |
| Insert Length (INSL) | 1/2" | Cutting Direction (HAND) | Right / Left |
| Depth of Cut Maximum (APMX) | 0.256" | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 1/8" | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees | Minimum Feed per Tooth (fz(min)) | 0.0059 "/tooth |
| Coating | TiCN+TiN | Measurement Type | Inch |
| Grade | IC250 | Body Material | Carbide |
Family Description
Square milling inserts with chip splitting serrated cutting edge, used for 45° roughing applications.
