Brand: Iscar

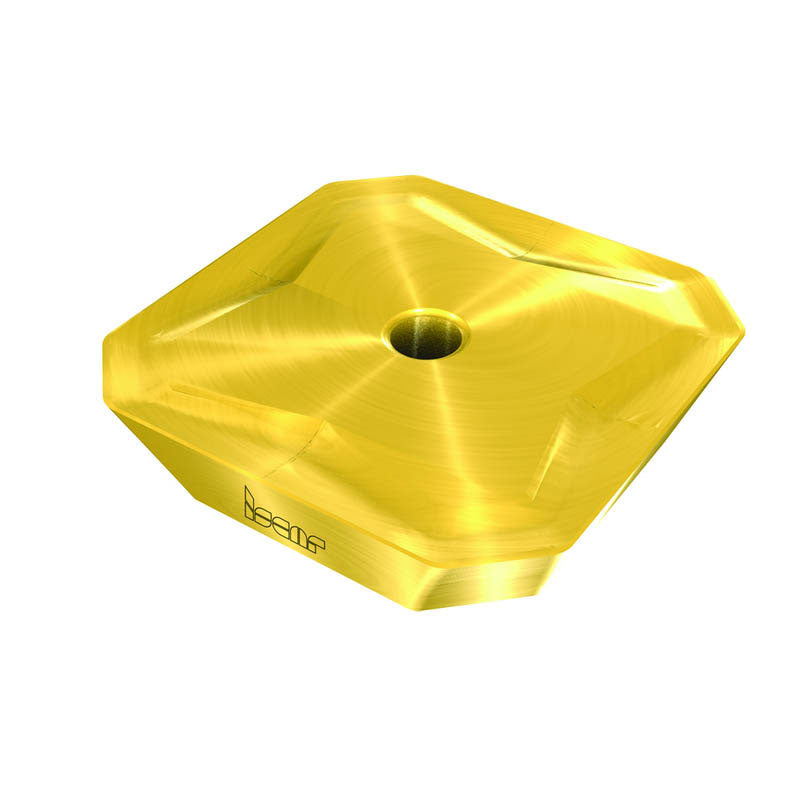

Iscar EH5601878 SEKR 42AFN-76 IC950
SKU: FTS-EH5601878
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5601878 SEKR 42AFN-76 IC950Full Description
| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.0079 "/tooth |
| Application | | Facing | Milling Inserts | Plunging & Recessing | Slanted Shoulder & Chamfer | | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 1/2" | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.256" | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 1/8" | Minimum Feed per Tooth (fz(min)) | 0.0047 "/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Grade | IC950 | Body Material | Carbide |
| Shape | 90° Square |
Family Description
Square milling inserts with ribs along edges - reducing heat transfer, used for 45° roughing applications.
