Brand: Iscar

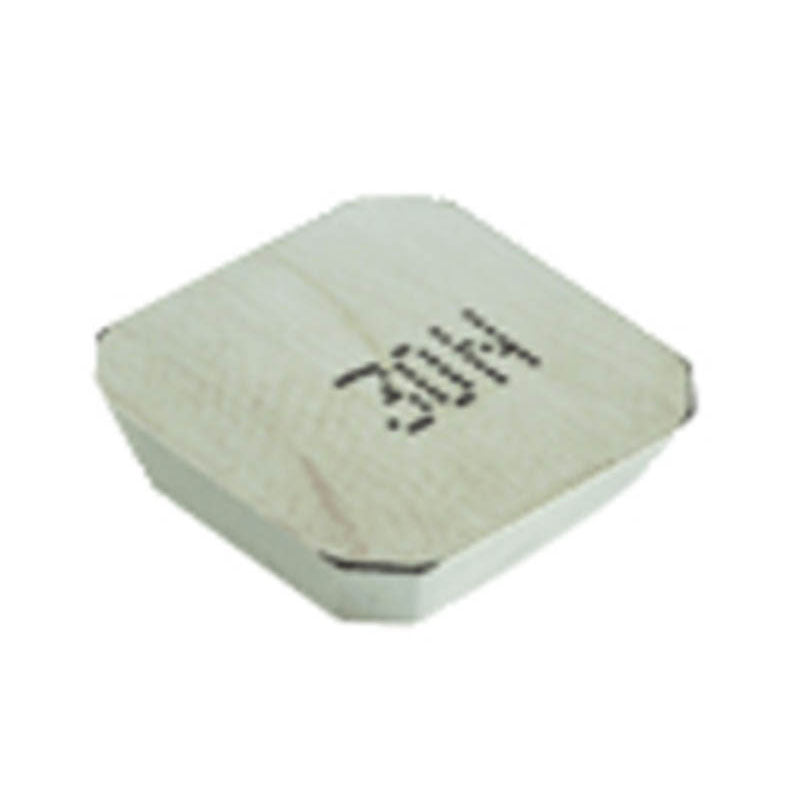

Iscar EH5601906 SEK 42AFTN IC910
SKU: FTS-EH5601906
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5601906 SEK 42AFTN IC910Full Description
| Applicable Material | | Steel | Cast Iron | | Shape | 90° Square |
| Application | | Facing | Milling Inserts | Plunging & Recessing | Slanted Shoulder & Chamfer | | Maximum Feed per Tooth (fz(max)) | 0.0079 "/tooth |
| Insert Length (INSL) | 1/2" | Cutting Direction (HAND) | Right / Left |
| Depth of Cut Maximum (APMX) | 0.256" | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 1/8" | Tool Type | Single sided Inserts |
| Insert Included Angle (EPSR) | 90 Degrees | Minimum Feed per Tooth (fz(min)) | 0.0047 "/tooth |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | IC910 | Body Material | Carbide |
Family Description
Flat rake face milling inserts for general use.
