Brand: Iscar

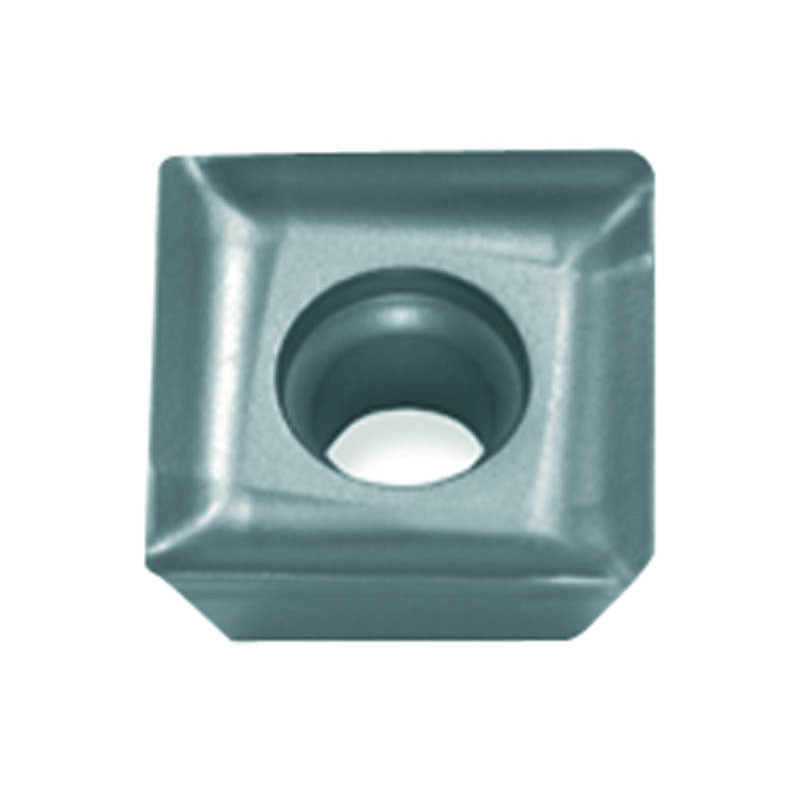

Iscar EH5603691 SDMT 1606PDR-HQ-M IC910
SKU: FTS-EH5603691
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5603691 SDMT 1606PDR-HQ-M IC910Full Description
| Applicable Material | | Steel | Cast Iron | | Shape | 90° Square |
| Application | | Countersinking | Facing | Milling Inserts | Plunging & Recessing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0059 "/tooth |
| Insert Length (INSL) | 0.646" | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0315" | Tool Type | Single sided Inserts |
| Insert Thickness (S) | 0.256" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
| Grade | IC910 |
Family Description
General use inserts with four helical cutting edges for 90° shoulder milling.
