Brand: Iscar

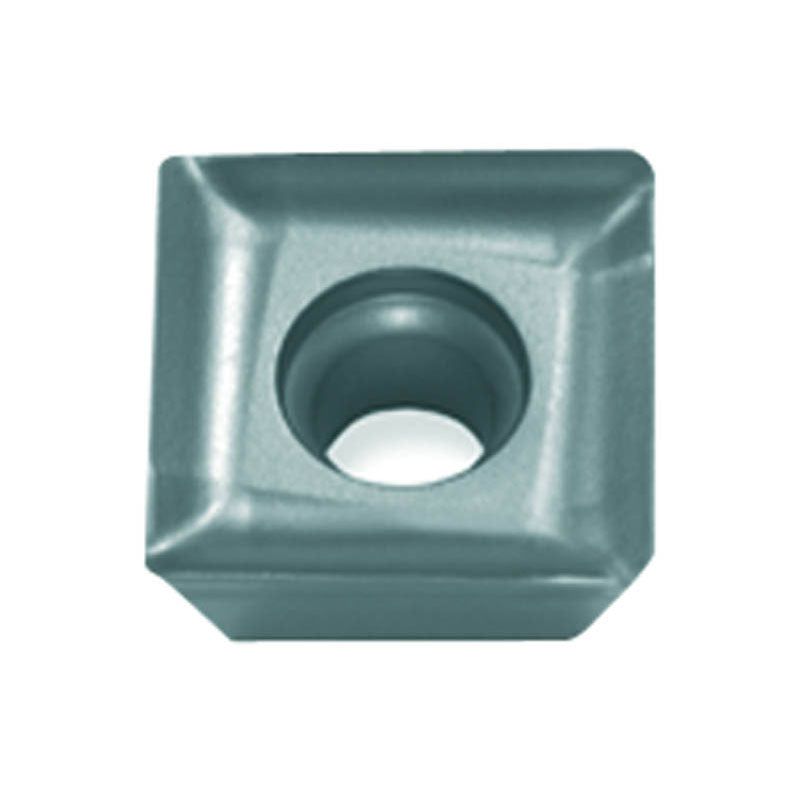

Iscar EH5603684 SDMT 1205PDN-RM-M IC910
SKU: FTS-EH5603684
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Iscar 5603684 SDMT 1205PDN-RM-M IC910Full Description
| Applicable Material | | Steel | Cast Iron | | Grade | IC910 |
| Application | | Facing | Milling Inserts | Shouldering | Slotting | | Shape | 90° Square |
| Insert Length (INSL) | 1/2" | Maximum Feed per Tooth (fz(max)) | 0.0059 "/tooth |
| Corner Radius (RE) | 0.0315" | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.394" | Cutting Edge Material | Carbide |
| Insert Thickness (S) | 0.197" | Tool Type | Single sided Inserts |
| Wiper Edge Length (BS) | 0.063" | Minimum Feed per Tooth (fz(min)) | 0.0031 "/tooth |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | AlTiN | Body Material | Carbide |
Family Description
Insert with helical cutting edges for 90° shoulder milling
