Brand: Ingersoll Cutting Tools

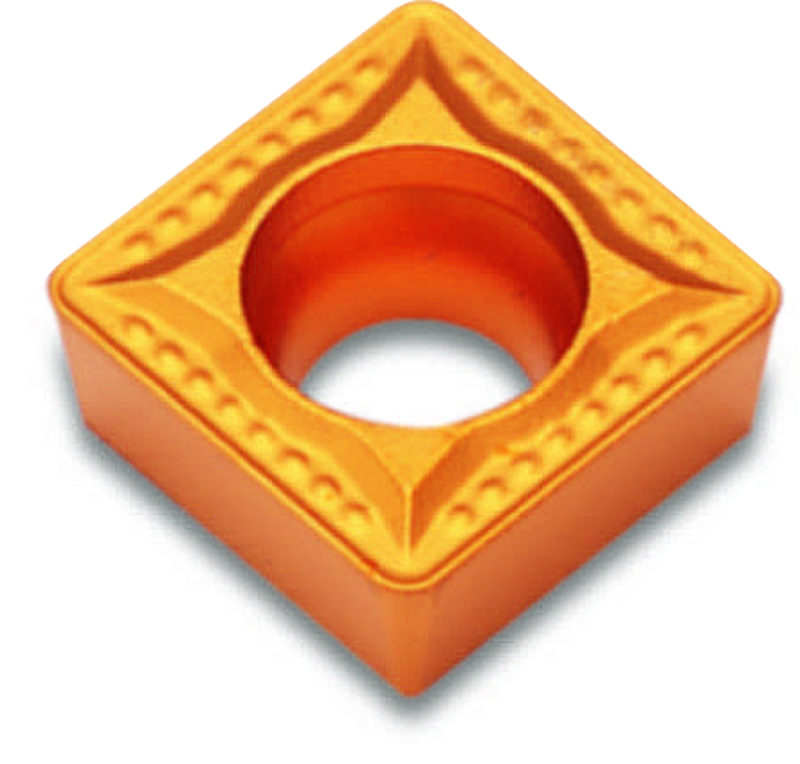

Ingersoll Cutting Tools IC065523639 SCMT432MT TT7015
SKU: FTS-IC065523639
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Ingersoll 5523639 SCMT432MT TT7015Full Description
| Insert Style | SCMT | Depth of Cut Maximum (APMX) | 0.197" |
| Corner Radius (RE) | 0.031" | Min. Turning Feed (ft(min)) | 0.005" |
| Insert Size | 432 | Max. Turning Feed (ft(max)) | 0.012" |
| Insert Thickness (S) | 0.187" | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/2" | Cutting Direction (HAND) | Neutral |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Series/List # | VBMT 432-MT |
| Grade | TT7015 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.217" | Cutting Edge Effective Length (LE) | 0.469" |
| Min D.O.C. | 0.039" |
