Brand: Dorian

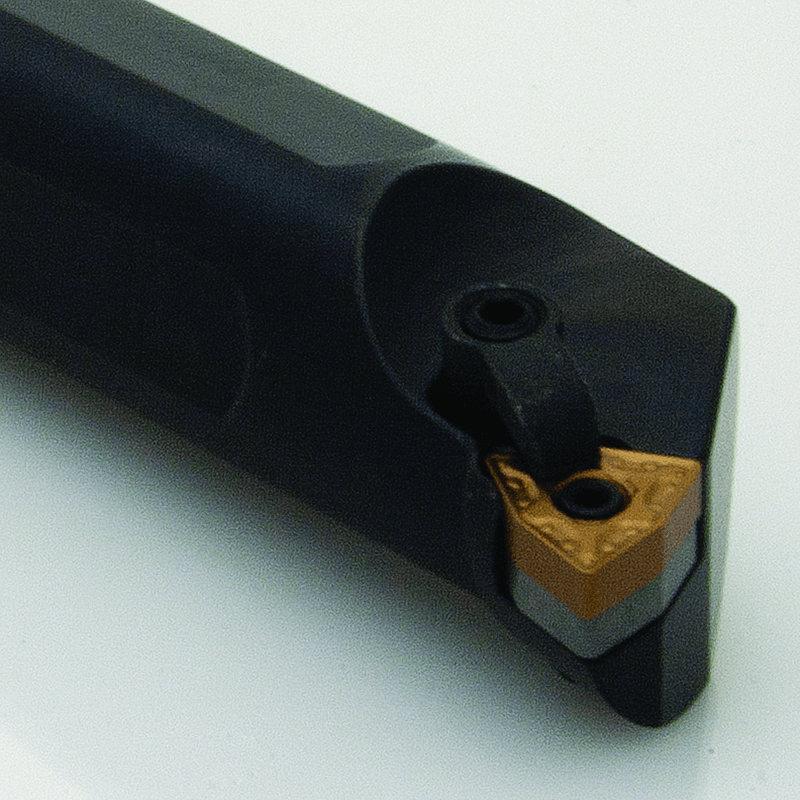

Dorian FL4543830 Indexable S24U-MWLNL-4 Left Hand 1-1/2" SH
SKU: FTS-FL4543830
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian 55331 Indexable S24U-MWLNL-4 Left Hand 1-1/2" SHFull Description
| Connection Diameter Machine Side (DCONMS) | 1-1/2" | Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 14" | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 14" | Tool Type | Indexable Boring Bars |
| Functional Width (WF) | 0.89" | Style | MWLNL |
| Master Insert Identification (MIID) | WNM_43_ | Rake Angle | 5 Degrees |
| Minimum Bore Diameter (DMIN) | 1.78" |
• S-MWLN R/L Boring Bars • Style LNegative 5° End & Side Cutting Edge Angle for negative trigon WNMG inserts
