Brand: Dorian

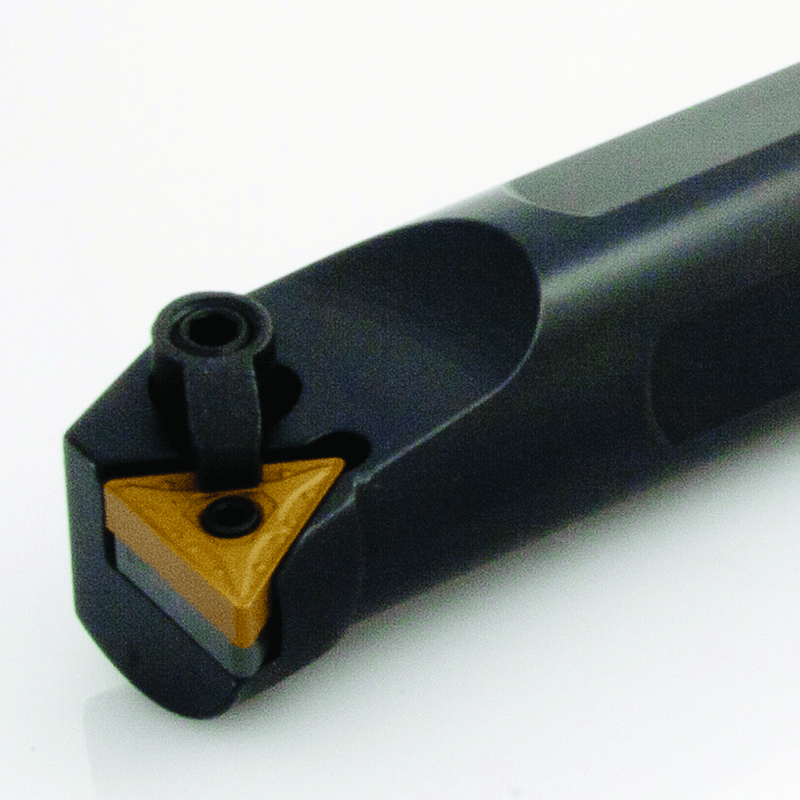

Dorian FL4543660 Indexable S20U-MTUNR-4 Right Hand 1-1/4" SH
SKU: FTS-FL4543660
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Supplier Note*
Please note the delivery date may vary based on product availability which is out of our control. As such, we cannot be held accountable for these unforeseen issues. Any and all cancelled orders due to circumstances beyond Freer's control will be subject to a 4% cancellation fee that will not be waived. By checking out, you agree to these terms.
Short Description
Dorian 55220 Indexable S20U-MTUNR-4 Right Hand 1-1/4" SHFull Description
| Connection Diameter Machine Side (DCONMS) | 1-1/4" | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 14" | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 14" | Tool Type | Indexable Boring Bars |
| Functional Width (WF) | 0.765" | Style | MTUNR |
| Master Insert Identification (MIID) | TNM_43_ | Rake Angle | 3 Degrees |
| Minimum Bore Diameter (DMIN) | 1.53" |
• S-MTUN R/L Boring Bars • Style UNegative 3° End Cutting Edge Anglefor negative triangle TNMG inserts
