Brand: Raptor Workholding Products

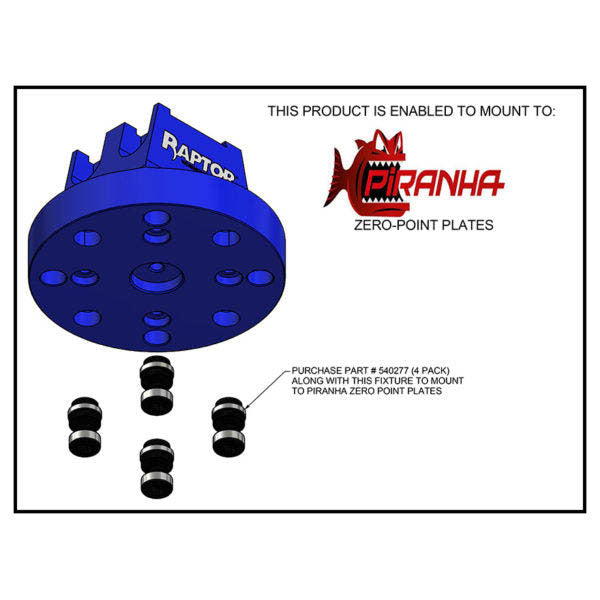

Raptor RWP-PIC3SS Stainless Steel Picatinny Rail Dovetail Fixture Connects Raptor Riser

SKU: RPT-RWP-PIC3SS
MPN: RWP-PIC3SS

$2,442.04
Unit price per

Shipping calculated at checkout.

*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**

*Please note, there is a $50 minimum for all Raptor product orders*

Short Description

Raptor Workholding RWP-PIC3SS Stainless Steel Picatinny Rail Dovetail Fixture Connects Raptor Riser

Full Description

Max Workpiece Weight lb.	50
Max Workpiece Width in.	8.00
Max Workpiece Length in.	8.00
Max Workpiece Height in.	8.00
Fixture Material	Stainless Steel
Clamp Part Number	RWP-PIC-CLAMP
Fixture Height in.	3.000

Clamps a standard Picatinny Rail. Fits any Raptor Riser with a 3.800 Raptor Interface

Fixtures must be bolted down firmly to your Pallet or Table using the screws provided.
Do not alter or replace any screw, spring or clamp with anything other than the exact item provided.
Clamps must be tightened between 120 and 175 inch pounds of torque. DO NOT EXCEED 175 Inch Pounds. While for most applications tightening can be accomplished simply by using the T-Handle wrench provided, it is always recommended that a torque wrench be used until you establish the proper torque pressure for your application. Depending on the size of your workpiece and the material being cut you may need to adjust your clamping pressure. It is never recommended to under or over torque the clamps as this will lead to clamp or fixture failure.
When machining your workpiece with the dovetail it is critical that you follow our sketches. Failure to do so may result in the workpiece coming loose and or damage to your fixture. Pay close attention to required sizes and radius requirements on the sketches.
Failure to follow these instructions may result in injury or damage to your workpiece, tools, fixtures and/or machine.
