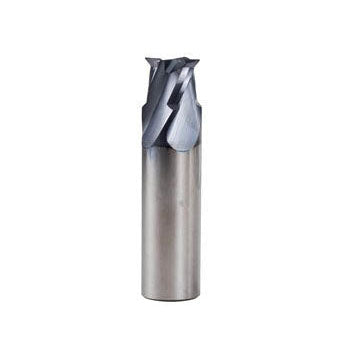

Raptor RWP-DC410C 4 Flute Coated, Carbide .1.125" Diameter 0.75" High Shank Dovetail Cutter

Dovetail cutters are used to prepare workpieces for the Raptor dovetail system. The RWP-DC410C four flute GX2 coated dovetail cutter is intended for hard-material workpieces: steel, titanium, and others.

All Raptor Dovetail Fixtures are attached to the workpiece using the same simple dovetail. Setup is quick, easy and the same for every part. Best of all, Raptor Dovetail Fixtures only require 1/8? of material to hold the workpiece. That means less waste, easier prep, and no distortion.

* Raptor dovetail cutters cut at 60 degree angle.

Aluminum1600-2000 .0025 .0045 .006 .0075 Gray Cast Iron 490-590 0.0008 0.0012 0.0018 0.0024 Soft Steels > 35Rc 295-390 0.0008 0.0012 0.0018 0.0024 Alloy steels 4130-4340 250-450 0.0016 0.0025 0.0031 0.0037 Tool Steels A2, D2, S7 150-300 0.0014 0.0020 0.0025 0.0032 Die Steels P20, H13 250-450 0.0016 0.0025 0.0031 0.0037 SS 303 290-375 0.0008 0.0012 0.0018 0.0024 SS 304, Invar, Kovar 230-280 0.0007 0.0011 0.0017 0.0023 SS 304L, 316L, 13-8Ph, etc. 295-360 0.0006 0.0010 0.0016 0.0022 Titanium 6AlV4, 6-2222 160-230 0.0006 0.0011 0.0014 0.0022 High Temperature Alloys 718 Inconel, A286, Haynes 80-120 0.0006 0.0011 0.0014 0.0022

Notice: We have provided the manufacturer’s recommended Speeds & Feeds Guidelines for our Raptor Dovetail Cutters. Raptor suggests that machinists consider their experience, their machining style (conservative or aggressive) as well as the type of machine being used, the material type being cut, and then make necessary adjustments using their best judgement taking into consideration all of the variables in the machining process.
