Brand: Raptor Workholding Products

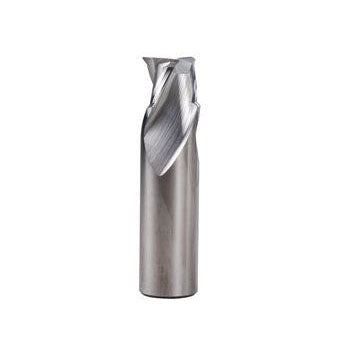

Raptor RWP-DC403U 3 Flute Uncoated .75" Diameter .125" High Dovetail Cutter
SKU: RPT-RWP-DC403U
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-DC403U 3 Flute Uncoated .75" Diameter .125" High Dovetail CutterFull Description
Height in. | 0.125 |
---|---|
Cutter Diameter in. | 0.750 |
Number of Flutes | 3 |
Coating | Uncoated |
Compatible With | RWP-001, RWP-001SS, RWP-002, RWP-002SS, RWP-003, RWP-003-4X, RWP-004, RWP-007SS, RWP-011SS, RWP-012SS, RWP-013, RWP-013SS, RWP-015, RWP-017SS, RWP-018, RWP-018SS, RWP-019-4X45T, RWP-019-4X90T, RWP-019SS, RWP-022SS, RWP-023, RWP-024, RWP-025, RWP-036SS, RWP-042SS, RWP-401-11 |
Dovetail cutters are used to prepare workpieces for the Raptor dovetail system. The RWP-DC403U three flute dovetail cutter is intended for soft-material workpieces: aluminum, brass, and others.
For harder materials, please use the RWP-DC404C 4 Flute Coated Dovetail Cutter
All Raptor Dovetail Fixtures are attached to the workpiece using the same simple dovetail. Setup is quick, easy and the same for every part. Best of all, Raptor Dovetail Fixtures only require 1/8? of material to hold the workpiece. That means less waste, easier prep, and no distortion.
* Raptor dovetail cutters cut at 60 degree angle.
Aluminum1600-2000
.0025
.0045
.006
.0075
Gray Cast Iron
490-590
0.0008
0.0012
0.0018
0.0024
Soft Steels > 35Rc
295-390
0.0008
0.0012
0.0018
0.0024
Alloy steels 4130-4340
250-450
0.0016
0.0025
0.0031
0.0037
Tool Steels A2, D2, S7
150-300
0.0014
0.0020
0.0025
0.0032
Die Steels P20, H13
250-450
0.0016
0.0025
0.0031
0.0037
SS 303
290-375
0.0008
0.0012
0.0018
0.0024
SS 304, Invar, Kovar
230-280
0.0007
0.0011
0.0017
0.0023
SS 304L, 316L, 13-8Ph, etc.
295-360
0.0006
0.0010
0.0016
0.0022
Titanium 6AlV4, 6-2222
160-230
0.0006
0.0011
0.0014
0.0022
High Temperature Alloys 718 Inconel, A286, Haynes
80-120
0.0006
0.0011
0.0014
0.0022
Notice: We have provided the manufacturer’s recommended Speeds & Feeds Guidelines for our Raptor Dovetail Cutters. Raptor suggests that machinists consider their experience, their machining style (conservative or aggressive) as well as the type of machine being used, the material type being cut, and then make necessary adjustments using their best judgement taking into consideration all of the variables in the machining process.
