Brand: Raptor Workholding Products
Raptor RWP-704 Aluminum 0.75" Dovetail Pinch Block
SKU: RPT-RWP-704
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-704 Aluminum 0.75" Dovetail Pinch BlockFull Description
Dovetail Height in. | 0.1250 |
---|---|
Dovetail Width in. | 0.750 |
Fixture Material | Aluminum |
In a pinch for an expedient solution for secondary/final operations with reoccuring machining or for removing a dovetail from the sixth side of a finshed part? Here it is, the ultimate solution…. the RWP-704 Pinch Block, with a 0.75? dovetail base!
The dovetail base of the pinch block is the same dovetail that has been prepped on your workpiece, to use on a Raptor 0.75? dovetail fixture. This is great because it allows you to utilize the same fixture immediately: Quickly swap out a workpiece and replace with this pinch block….no need to breakdown a set-up for another workholding product.

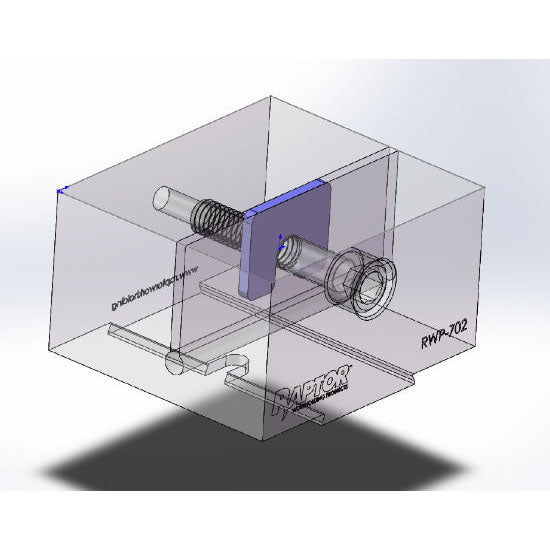

The shim insert, provided, acts as a spacer so that the part’s shape can be carved out in its most natural state, essentially contouring its shape.

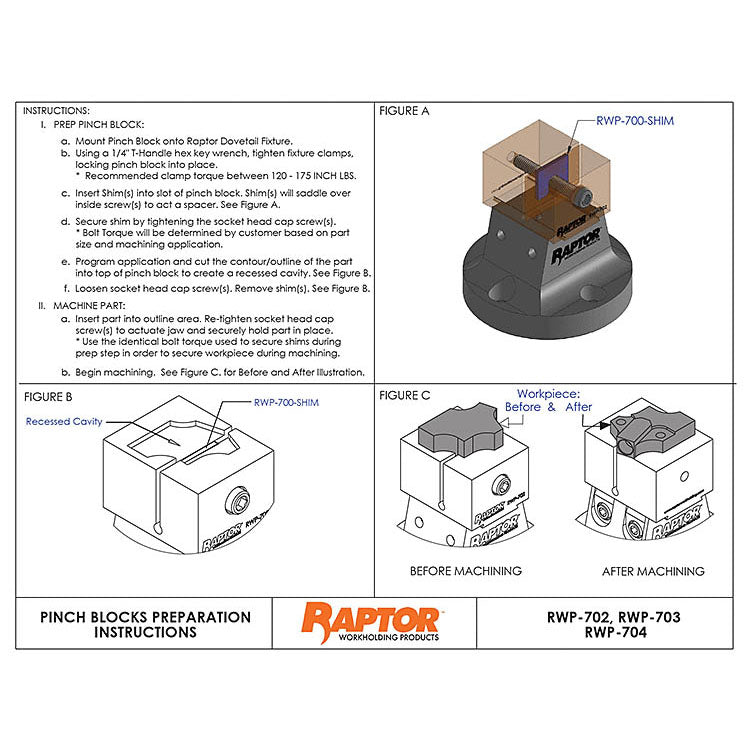

Using the pinch block is simple: load the pinch block onto the dovetail fixture, carve out the shape of your part, drop your part in, hand-tighten jaws with a 5/16 hex key hand wrench, and start machining.
Having a set of these on hand, ready to use, is a great tool to have in your arsenal.

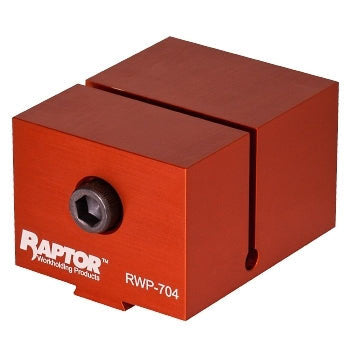

Pinch Block made from 7075-T6511 Aluminum, Anodized Class 2 Type II

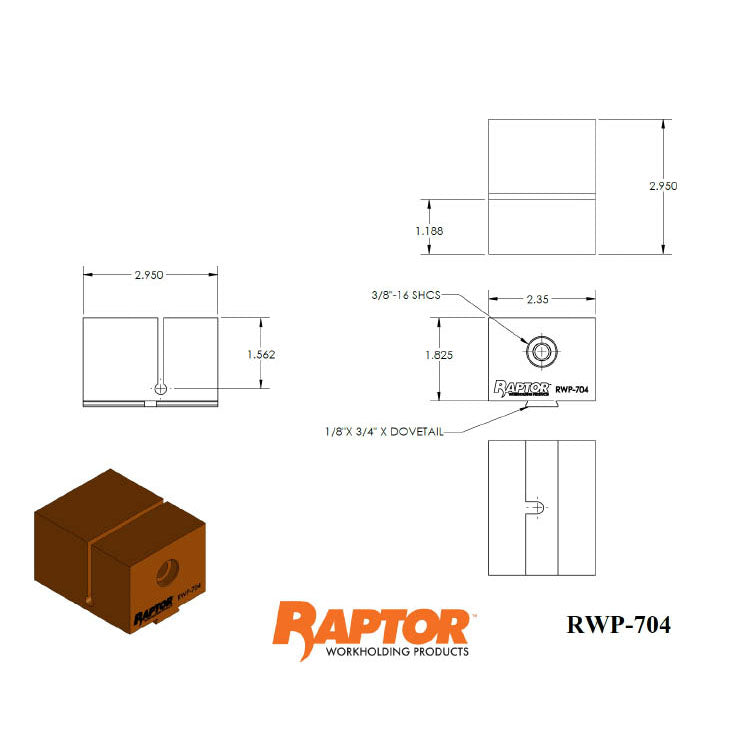

Dimensions are 2.350? l x 2.950? w x 1.820? h.
