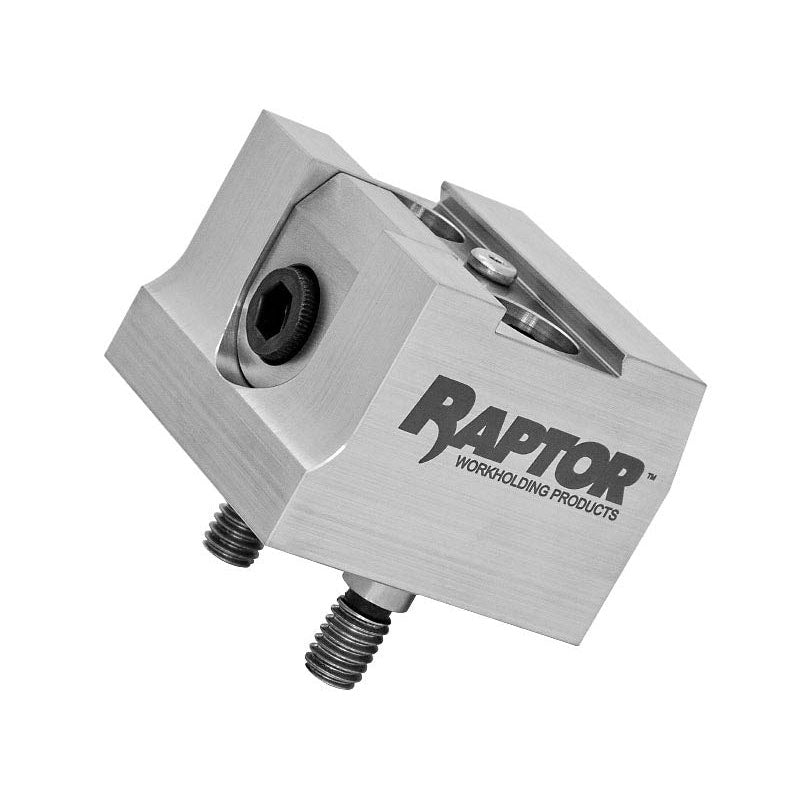

Raptor RWP-024SS Aluminum 0.75" Dovetail Fixture
SKU: RPT-RWP-024SS
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Raptor product orders*
Short Description
Raptor RWP-024SS Aluminum 0.75" Dovetail FixtureFull Description
| Dovetail Width in. | 0.750 |
|---|---|
| Dovetail Height in. | 0.1250 |
| Max Workpiece Weight lb. | 8 |
| Max Workpiece Width in. | 4.00 |
| Max Workpiece Length in. | 4.00 |
| Max Workpiece Height in. | 4.00 |
| Fixture Material | Stainless Steel |
| Number of Clamps | 1 |
| Clamp Part Number | RWP-CL302SQ |
| Fixture Height in. | 1.500 |
The RWP-024SS is a 0.750? dovetail fixture for milling applications. This product design has modular application capabilities in which multiple RWP-024SS fixtures can be placed in-line to hold long parts, which we refer to as a bridge system. Refer to the Related Products tab for additional information.
The standard RWP-024SS is manufactured from 17-4 Stainless Steel. Custom materials can be special-ordered.
The fixture clamp is made from 17-4 Stainless Steel.
Fixture comes with alloy bolts.
* EDM Kits available at an additional cost.
Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.
* Typical workpiece size dimensions (L x W x H): From: 2.00? x 2.00? x 0.50? To: 4.00? x 4.00? x 4.00?
Patented Design. Patent US8,672,310 B2
HAVE AN EDM APPLICATION?
USE RAPTOR’S STAINLESS STEEL DOVETAIL FIXTURES
Our stainless steel fixtures and clamps are made from 17-4 stainless steel; Heat Treat: H-1150 / Rockwell Hardness Approximate 28.
ONE-STEP SETUP
Switch from a standard application to an EDM application in a single step: Simply substitute the clamping system socket head cap screws from alloy steel to stainless steel.
