Brand: HALDER
RUBBER ENDSTOP BUFFERS - 25150.0552
SKU: EH-25150.0552
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description

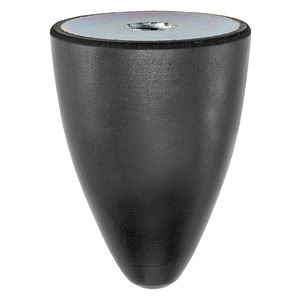

Rubber Endstop Buffers, parabolic/with female thread | d1=50 mm / l1=61 mm | 25150.0552Halder 25150.0552 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
To be used as an elastic end-stop.
Due to the parabolic form the absorption is first soft and raises progressively.
The hardness is 55 –’5–‘ shore A. Further shore hardnesses (40 –’5–‘ shore A and 70 –’5–‘ shore A) on request.
Material
Support washer
- Steel, zinc-plated, blue chromated
Threaded bushing
- Steel, zinc-plated, blue chromated
Body
- Natural rubber (caoutchouc NR), black
Screw
- Steel, zinc-plated, blue chromated
