Brand: HALDER

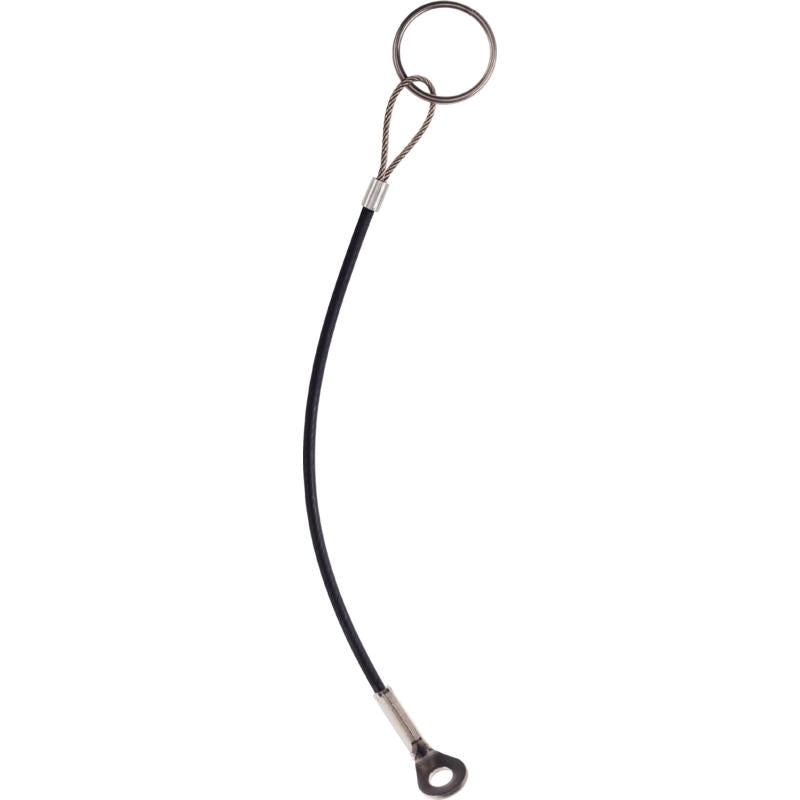

RETAINING CABLES - 22400.0960
SKU: EH-22400.0960
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Halder product orders*
Short Description
Retaining Cables/stainless steel, with holding ring and loop to be screwed | l=150 mm / Thermoplastic PA 6 coated, clear | 22400.0960Halder 22400.0960 Data Sheet
*Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.*
Full Description
These retaining cables secure the single-acting ball lock pin EH 22340., EHá22350., EHá22370. and EHá22380., as well as clamping pin EHá22360., and socket pin EHá22400. against possible loss.
Material
Attaching ring
- Stainless steel
Ring
- Stainless steel
Retaining cable
- Stainless steel
Coating retaining cable
- Thermoplastic PA 6 coated, clear
Assembly
Attached holding clips (picture 5/6) to the ball lock pin with a soft-face mallet, disassemble via levering it with a screw driver.
Thermoplastic version (picture 7): cut-off projecting ends without burr after being fastened.
Spiral form design (picture 8) with very high effective working length.
Notes
Special types on request.
Models picture 3 and picture 4 correspond to MIL-DTL-83420.
Not for ball-lock pins, basic type
