Brand: JW Winco

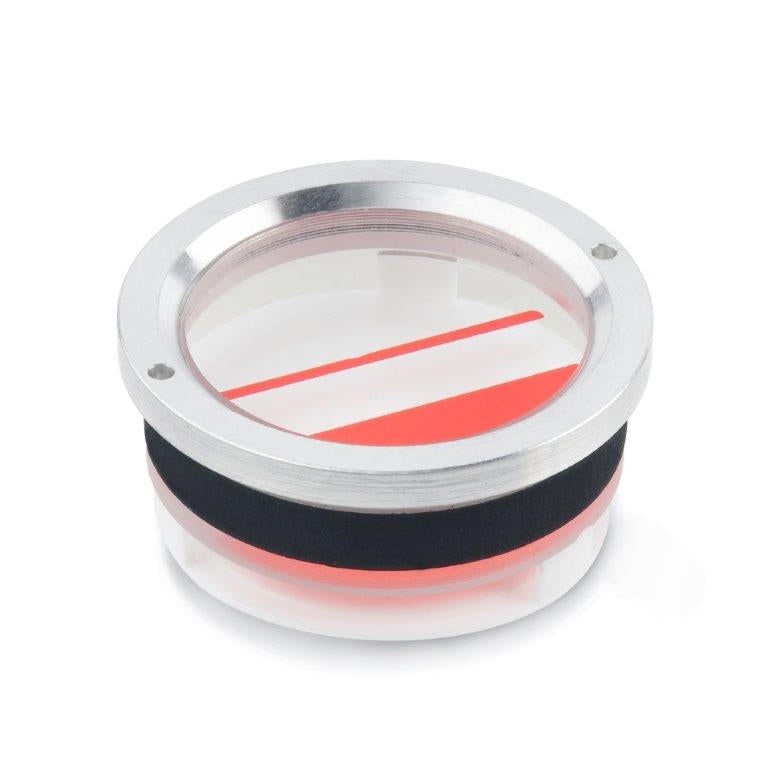

JW WINCO RD1/B GN537-16-20-B OIL SIGHT GLASS ALUMINUM W/LEVEL INDICATOR W/RUBBER SEAL
SKU: JW-RD1/B
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Short Description
JW WINCO RD1/B GN537-16-20-B OIL SIGHT GLASS ALUMINUM W/LEVEL INDICATOR W/RUBBER SEALNo thread is required for installing the GN 537 fluid level sight glasses. The fluid level sight glass is inserted into the bore, tolerance H11. By simply tightening the ring nut using the pin key, the seal is pressed against the contact surface which, at the same time, holds the sight glass in position. Application is limited to non-pressurized or slightly pressurized tanks .
Aluminum Body, Plexiglas Sight Glass
NBR Rubber Seal with Plastic Reflector
GN 537 Standard Sheet
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
Full Description
JW WINCO RD1/B GN537-16-20-B OIL SIGHT GLASS ALUMINUM W/LEVEL INDICATOR W/RUBBER SEAL
No thread is required for installing the GN 537 fluid level sight glasses. The fluid level sight glass is inserted into the bore, tolerance H11. By simply tightening the ring nut using the pin key, the seal is pressed against the contact surface which, at the same time, holds the sight glass in position. Application is limited to non-pressurized or slightly pressurized tanks .
Body: Aluminum
Sight Glass: Plexiglas
Seal: NBR Rubber
Reflector: Plastic
Window Dia.: 0.63"
Body Dia.: 0.79"
Sealing Length: 0.35"
Overall Dia.: 0.98"
Body Length: 0.59"
Window Length: 0.14"
*All JW Winco orders must meet a $75 minimum or there will be a $10 processing fee.*
