Brand: Raptor Workholding Products

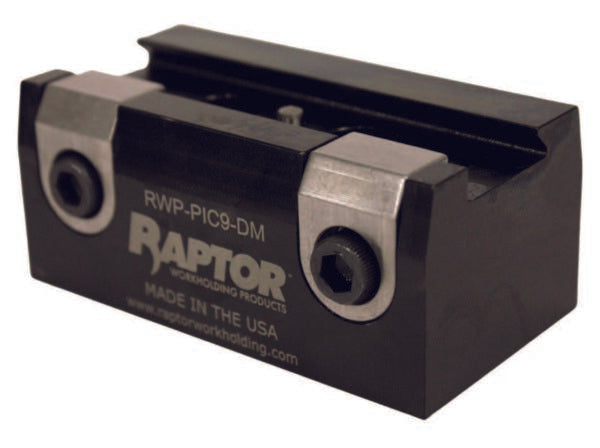

Raptor RWP-PIC9-DM Picatinny Rail Fixture 3.50” Long– Direct mount
SKU: RPT-RWP-PIC9-DM
MPN:
Shipping calculated at checkout.
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $75 minimum for all Raptor product orders*
Enhance your CNC workholding with the Raptor RWP-PIC9-DM Picatinny Rail Fixture 3.50” Long– Direct mount. RWP-PIC9-DM Picatinny Rail Fixture 3.50” Long– Direct mount. RWP-PIC9-DMMin Workpiece Size (L x W x H in.): 3.50 x 2.00 x 0.50
Max Workpiece Size (L x W x H in.): 6.50 x 4.00 x 4.00
Max Workpiece Weight lb.: 30
Dimensions (L x W x H in.): 3.50 x 2.0 x 1.625 Picatinny Rail Fixture 3.50” Long– Direct mount Clamps a standard Picatinny Rail. This fixture mounts and locates with (2) socket head shoulder screws. Body Material: 4140 PHT Steel Raptor Picatinny Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece – Most features can be completed in a single operation. Our unique Raptor Picatinny spring-loaded clamps are designed to fit the industry standard to hold the rails. You prepare a picatinny rail on your first operation, and this fixture will hold your final operation. Easy, strong and efficient. See Key Dimension Drawing for details. This fixture delivers exceptional stability and repeatability for high-speed operations. Upgrade your fixturing game—choose the Raptor RWP-PIC9-DM Picatinny Rail Fixture 3.50” Long– Direct mount for reliable and efficient clamping.
