Raptor RWP-405 Aluminum 0.75" 8" Rail Dovetail Fixture
SKU: RPT-RWP-405
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-405 Aluminum 0.75" 8" Rail Dovetail FixtureFull Description
Dovetail Width in. | 0.750 |
---|---|
Dovetail Height in. | 0.1250 |
Max Workpiece Weight lb. | 65 |
Max Workpiece Width in. | 4.00 |
Max Workpiece Length in. | 14.00 |
Max Workpiece Height in. | 4.00 |
Fixture Material | Aluminum |
Number of Clamps | 4 |
Clamp Part Number | RWP-CL302SQ |
Fixture Height in. | 3.000 |
Dovetail Length in. | 8 |

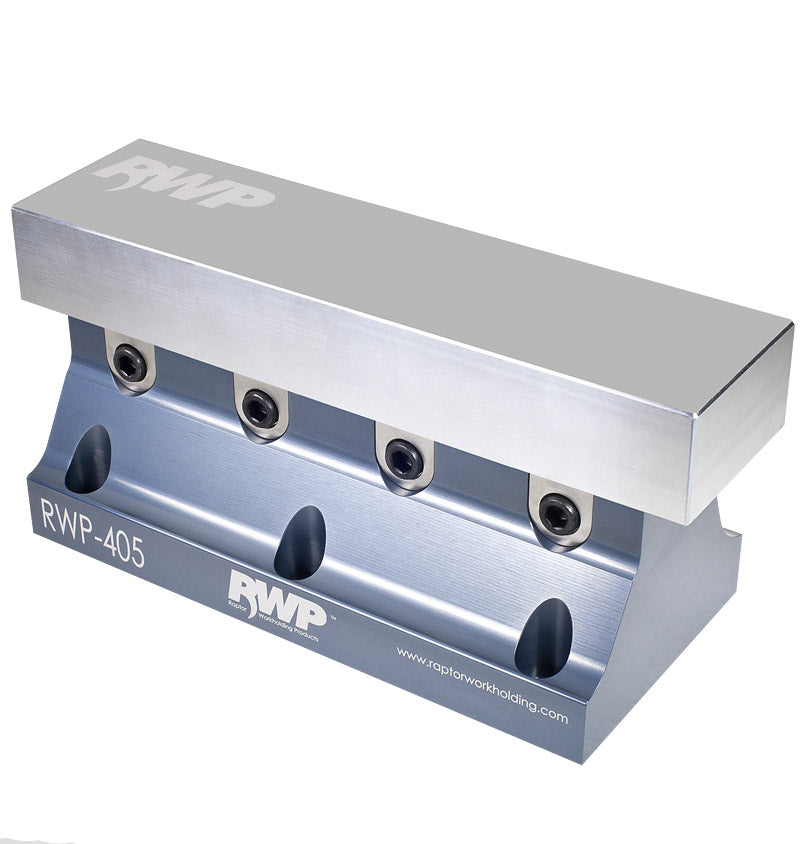

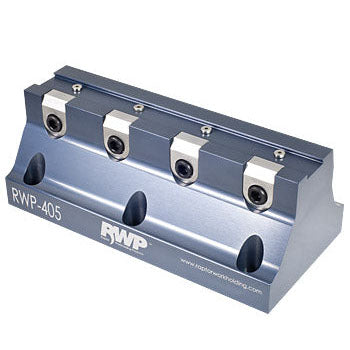

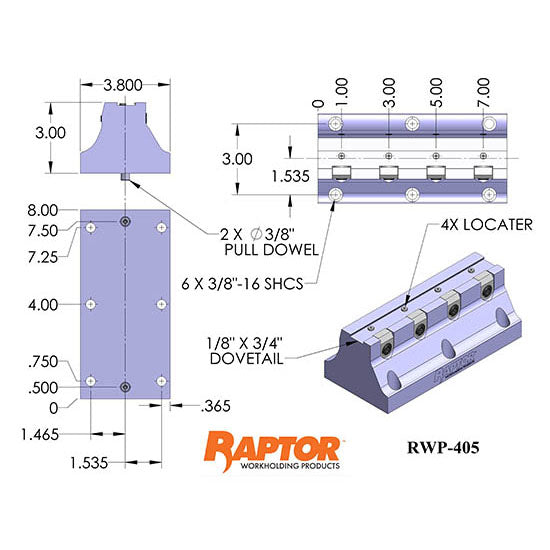

The RWP-405 is an aluminum rail, 8? in length with four clamps, utilizes a 0.750? dovetail width x .125” high. This is a dovetail fixture for Five Axis and Horizontal milling applications. It offers superior clamping strength and good access to five sides of the workpiece. The fixture can be used to hold one large workpiece or multiple pieces together along the same surface.
The standard RWP-405 is manufactured from 7075-T6511 aluminum and anodized: Class 2 Type II.
Custom materials can be special-ordered.
The fixture clamps are made from 17-4 Stainless Steel.

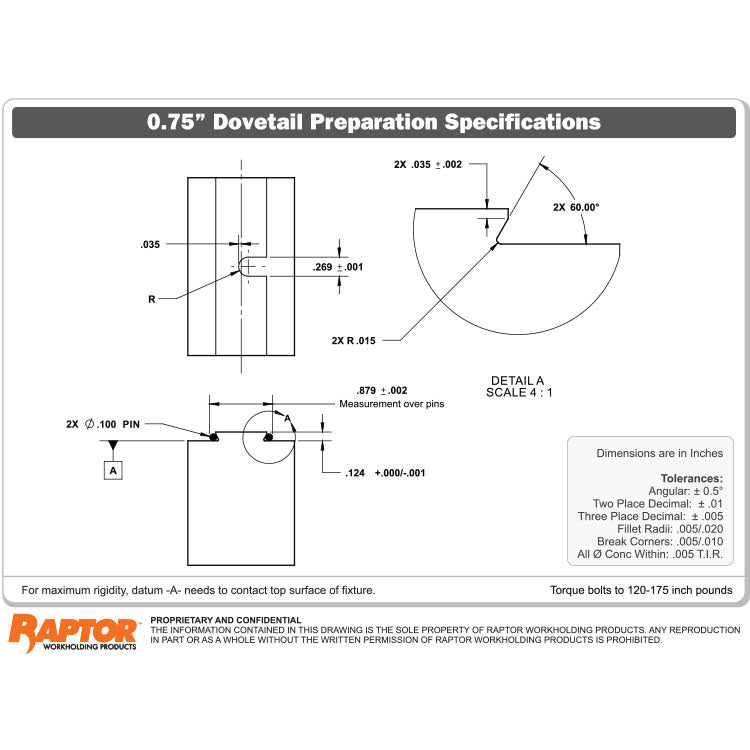

Raptor Dovetail Fixtures are made to hold your part on four and five-axis CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece– Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only 1/8? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.
* Typical one large workpiece size (L x W x H): From: 8.00? x 1.75? x 0.50? To: 14.0?” x 4.00? x 4.00? Steel
Patented Design. Patent US8,672,310 B2
