Brand: Raptor Workholding Products
Raptor RWP-401-11 Aluminum 1.5" Rail Dovetail Fixture
SKU: RPT-RWP-401-11
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-401-11 Aluminum 1.5" Rail Dovetail FixtureFull Description
Dovetail Width in. | 1.500 |
---|---|
Dovetail Height in. | 0.1250 |
Max Workpiece Weight lb. | 120 |
Max Workpiece Width in. | 7.00 |
Max Workpiece Length in. | 17.00 |
Max Workpiece Height in. | 12.00 |
Fixture Material | Aluminum |
Number of Clamps | 6 |
Clamp Part Number | RWP-CL301SQ |
Fixture Height in. | 3.000 |

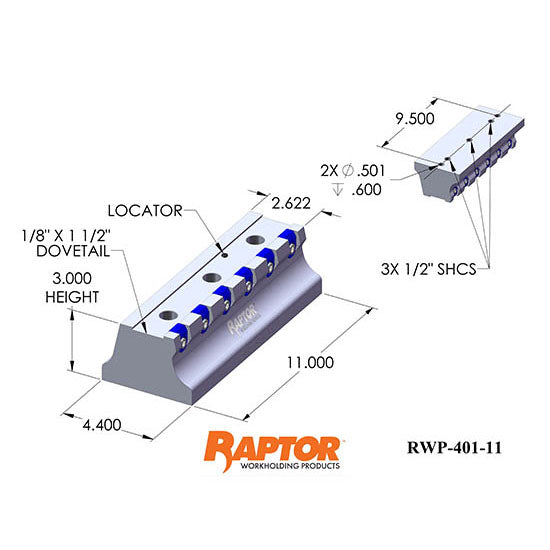

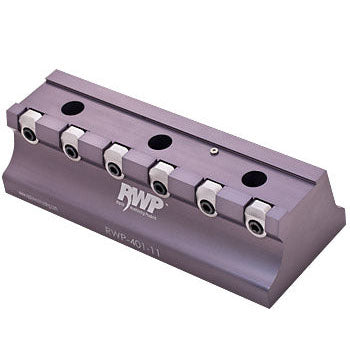

The RWP-401-11 is a dovetail fixture for Five Axis and Horizontal milling applications. It offers superior clamping strength and good access to five sides of the workpiece. The RWP-401-11 utilizes a 1.5? dovetail width x .125” high. This particular rail is 11” long with six clamps, however, custom fixture lengths and various clamp configurations (more or less clamps) can easily be produced per your specifications.
This fixture is manufactured from 7075-T6511 aluminum and anodized: Class 2 Type II.
The fixture clamps are made from 17-4 Stainless Steel.

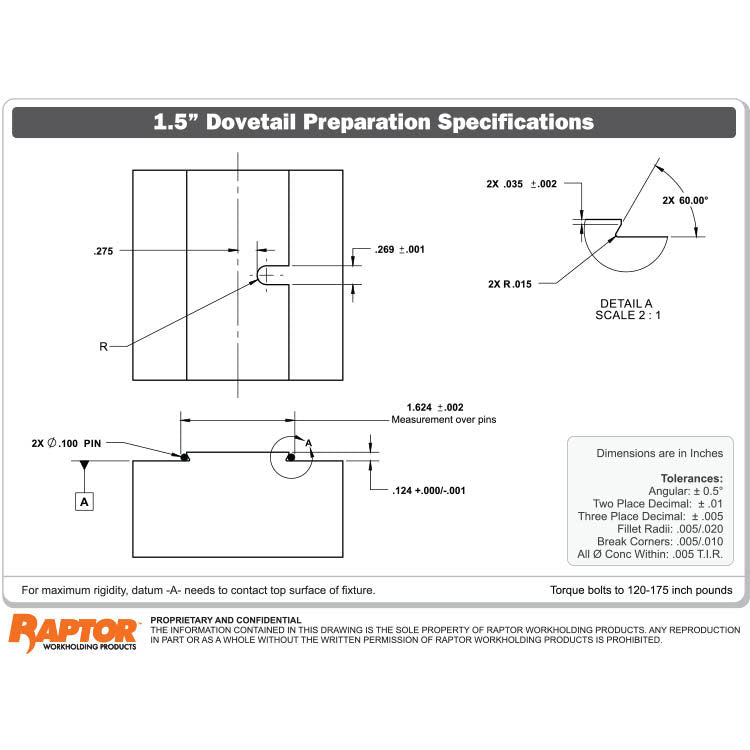

Raptor Dovetail Fixtures are made to hold your part on Five Axis and Horizontal milling CNC machines. The fixtures provide rigid clamping while exposing five faces of the workpiece. Most features can be completed in a single operation. Our unique Raptor Dovetail spring-loaded clamps require only .125? of material to hold the workpiece. That means less waste, easier prep and no distortion. You prepare all your parts with a single dovetail and utilize the same fixture for every part. Easy, strong and efficient.
This fixture is versatile. It can be used to hold multiple smaller workpieces or one large workpiece. Typically for larger workpiece sizes would be from 9.5? x 2.65? x 0.50? to 17.0? x 7.0? x 12.0?.
Patented Design. Patent US8,672,310 B2
