Brand: Raptor Workholding Products

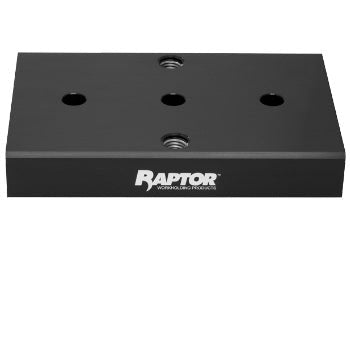

Raptor RWP-244-V100 2.25" Dovetail 100mm Vise Plate Connector for RWP-502 Vise
SKU: RPT-RWP-244-V100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-244-V100 2.25" Dovetail 100mm Vise Plate Connector for RWP-502 ViseFull Description
Height in. | 1.000 |
---|---|
Machine Type | Any |

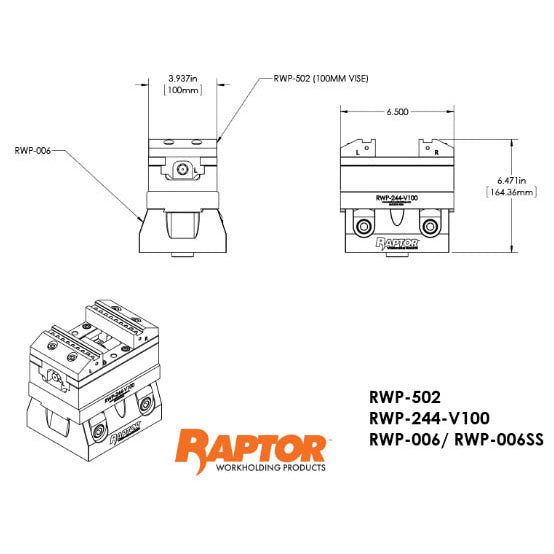

Connects to | RWP-006, RWP-006SS, RWP-502 |

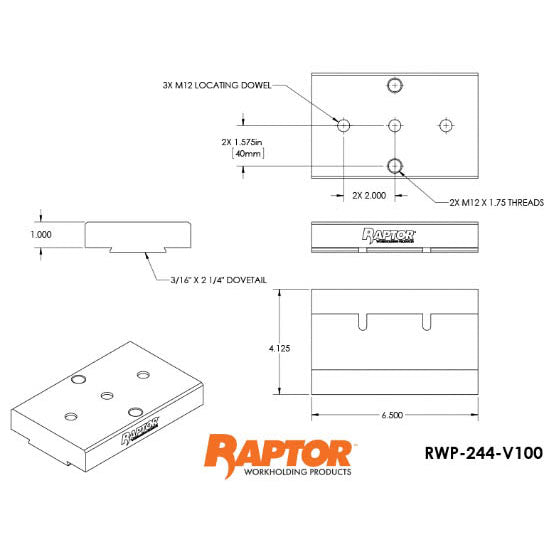

The RWP-242-V100 is designed with the following interfaces:
Top surface has the RWP-502, 100mm Self Centering Vise, mounting interface.
Bottom surface has the RWP-006(SS), 2.25” dovetail, mounting interface.

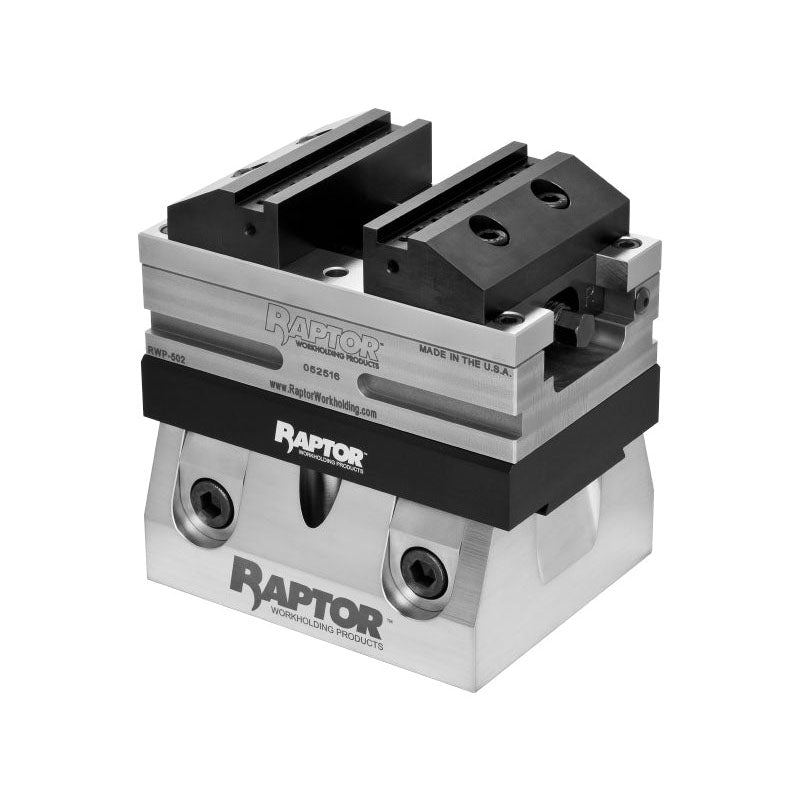

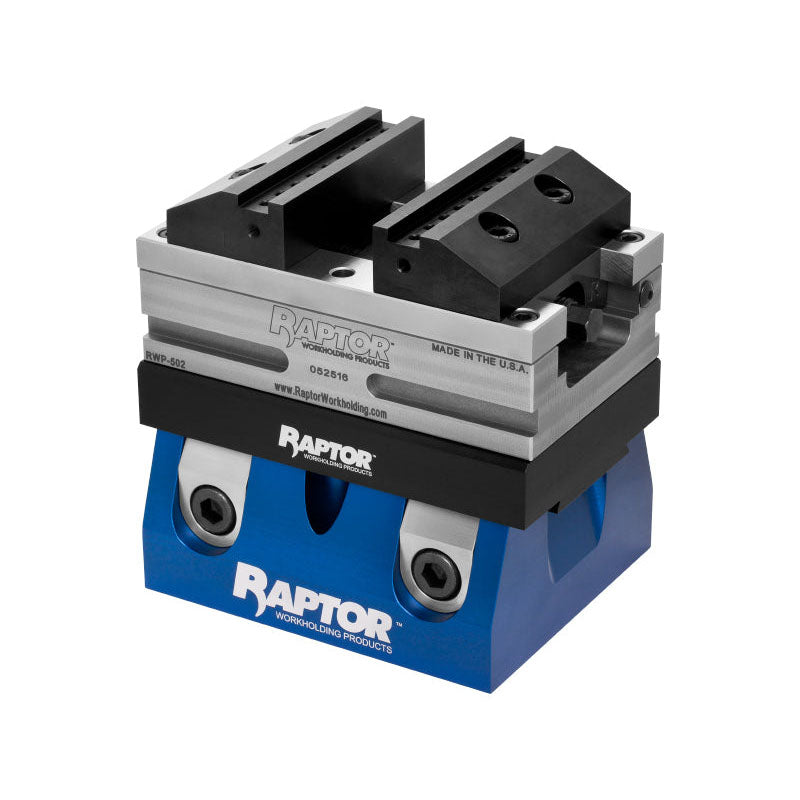

The great feature about this product is that it allows you flexibility to interchange from a dovetail fixture application to a vise application, or vise versa, without breaking down your setup. It’s simple and quick:
- Mount the dovetail vise plate on to the RWP-006(SS) fixture, secure the spring loaded clamps
- Insert the 2 dowel pins into the plate holes, designated for centering & locating.
- Position the vise over the dowel pins, load onto the plate, insert and tight the Mitee Bite Loc-Down screws.
The RWP-244-V100 is manufactured from 7075 Aluminum – Anodized:Type II Class 2.
Our adapters and risers allow you to attach Raptor Workholding products to any four or five-axis CNC machine. If you need an adapter or riser not seen here, please let us know.
