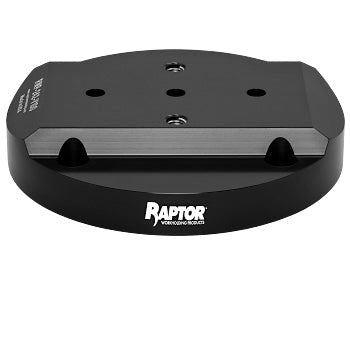

Raptor RWP-242-V100 Aluminum Riser Plate for RWP-502 Vise 8.450" Diameter, 1.75" Height
SKU: RPT-RWP-242-V100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-242-V100 Aluminum Riser Plate for RWP-502 Vise 8.450" Diameter, 1.75" HeightFull Description
Diameter in. | 8.450 |
---|---|
Height in. | 1.750 |
Machine Type | Any |
Connects to | RWP-502 |
The RWP-242-V100 is an aluminum riser plate, designed with the Raptor vise, RWP-502, interface.
The vise and riser plate connect together using (2) Loc-Down Screws and (2) dowel pins (one for locating/one for centering).
Depending upon your application needs, there are three mounting options:

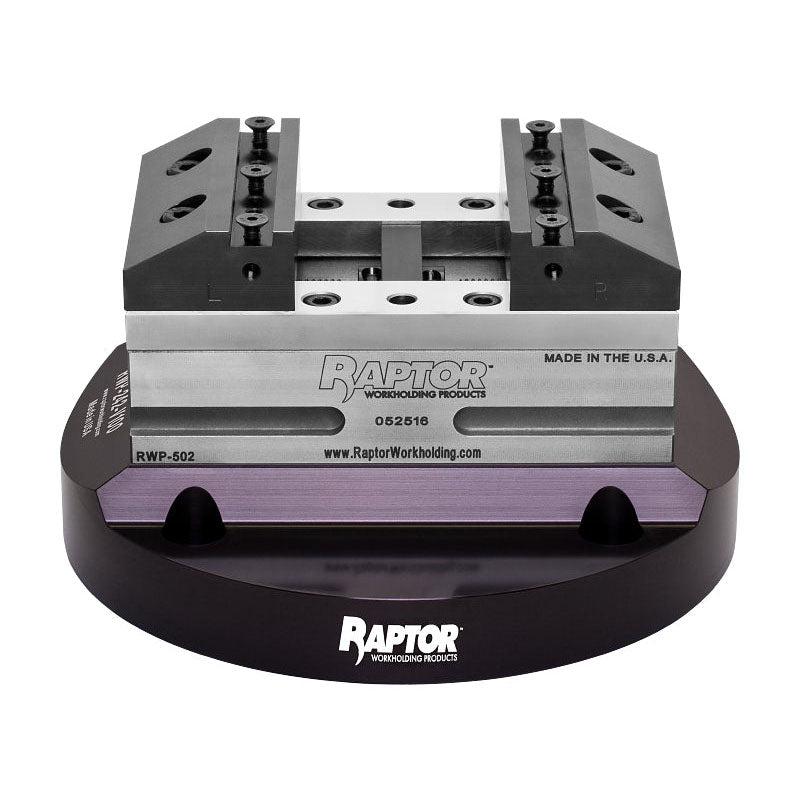

- Mount the RWP-502 vise directly to RWP-242-V100 riser plate.*
- Stacked: mount the RWP-502, RWP-242-V100 riser plate with the RWP-222-V100 universal adapter – small dia.*
- Stacked: mount the RWP-502, RWP-242-V100 riser plate with the RWP-223-V100 universal adapter – lrg dia.*
* See additional images for product mounting illustrations.
The RWP-242-V100 is manufactured from 7075-T6511 aluminum.
Our adapters and risers allow you to attach Raptor Workholding products to any four or five-axis CNC machine. If you need an adapter or riser not seen here, please let us know.
