Brand: Raptor Workholding Products

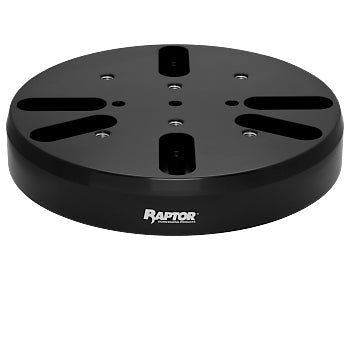

Raptor RWP-223-V100 Aluminum Universal Adapter for RWP-502 Vise 11.900" Diameter, 2.00" Height
SKU: RPT-RWP-223-V100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-223-V100 Aluminum Universal Adapter for RWP-502 Vise 11.900" Diameter, 2.00" HeightFull Description
Diameter in. | 11.900 |
---|---|
Height in. | 2.000 |
Machine Type | Any |
Connects to | RWP-242-V100, RWP-502 |
This universal adapter is designed with the Raptor vise, RWP-502, interface. The vise connects to this adapter using (2) Loc-Down Screws and (2) dowel pins (one for locating/one for centering).
The adapter also has T-slots to allow for use on multiple machine pallets or rotary tables.
Depending upon your application needs, there are two mounting options:

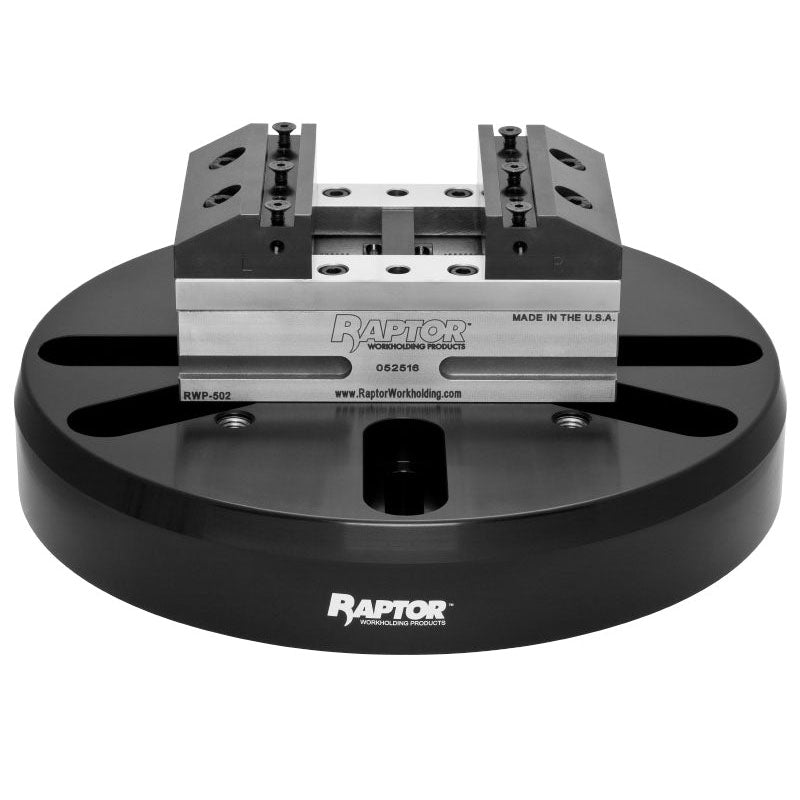

- RWP-502 vise mounted directly to RWP-223-V100 universal adapter.*

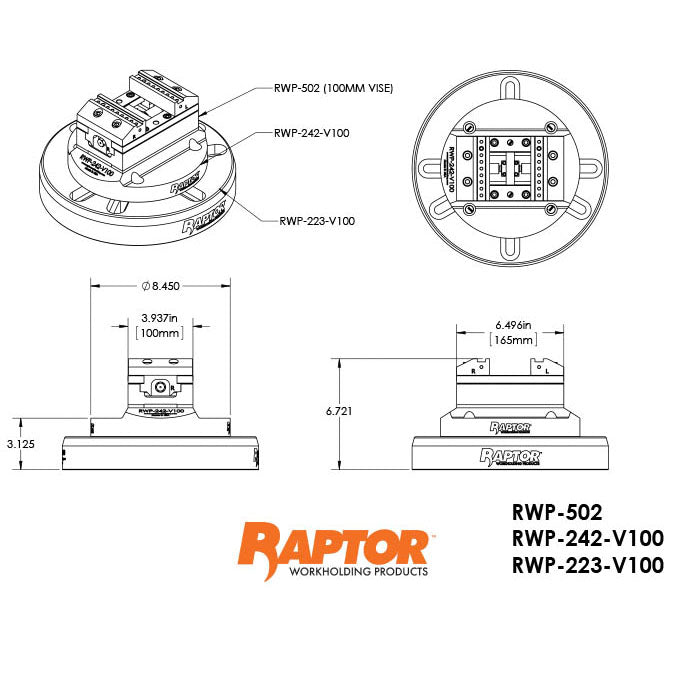

- Stacked: Mounting the RWP-502 vise, the RWP-242-V100 riser plate, with the RWP-223-V100*

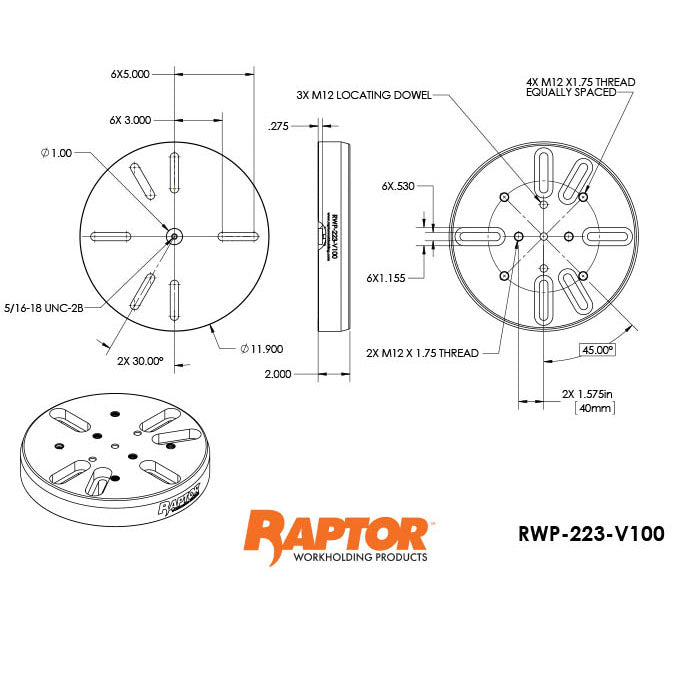

* See additional images for product mounting illustrations.
The RWP-223-V100 is manufactured from 7075 aluminum, anodized Type II Class 2.
Our adapters and risers allow you to attach Raptor workholding products to any four or five-axis CNC machine. If you need an adapter or riser not seen here, please let us know.
