Brand: Raptor Workholding Products
Raptor RWP-209-V100 Aluminum Emergency Adapter for RWP-502 Vise9.9" Diameter, 1.500" Height
SKU: RPT-RWP-209-V100
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-209-V100 Aluminum Emergency Adapter for RWP-502 Vise9.9" Diameter, 1.500" HeightFull Description
Diameter in. | 9.90 |
---|---|
Height in. | 1.500 |
Machine Type | Any |
Connects to | RWP-502 |

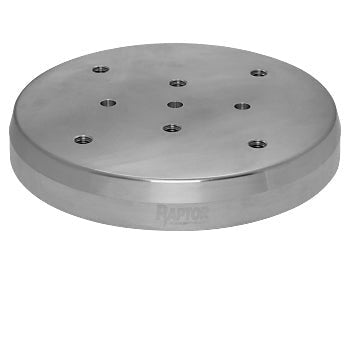

The RWP-209-V100 is an emergency adapter plate designed without table/pallet mounting holes. This allows for customers to drill table/pallet mounting holes to match the mounting configurations of the table/pallet of multiple machines.
This riser plate has been designed with the Raptor Vise, RWP-502, interface. The products are connected together using (2) Loc-Down Screws and (2) dowel pins (one for locating and one for centering)
Depending upon your application needs, there are two mounting options:

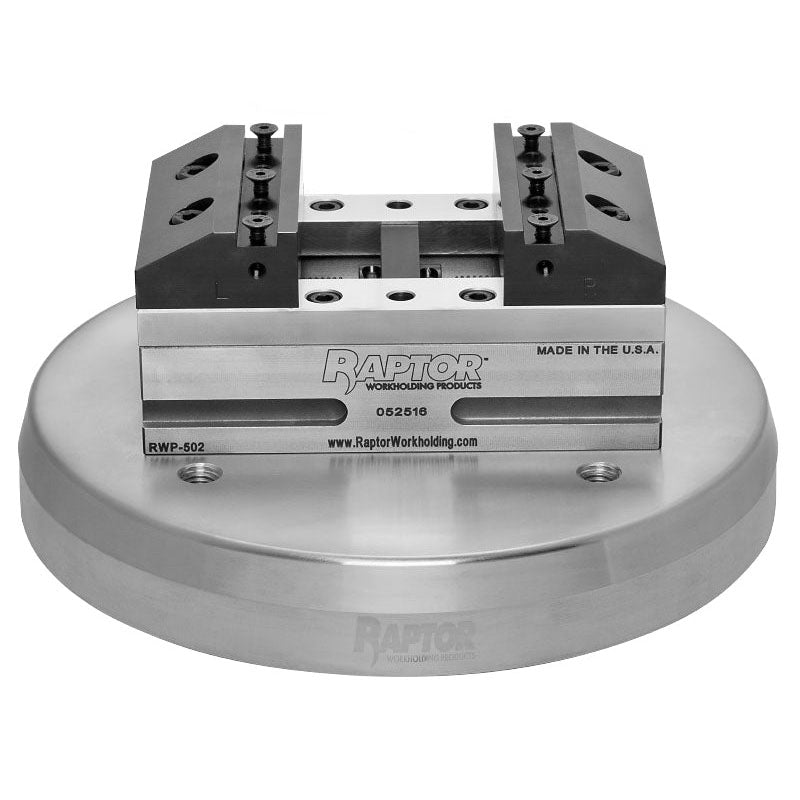

- Mount RWP-502 vise directly to RWP-209-V100 universal adapter.*
- Stacked: mount the RWP-502 vise, the RWP-242-V100 riser plate, with the RWP-209-V100 emergency adapter.*

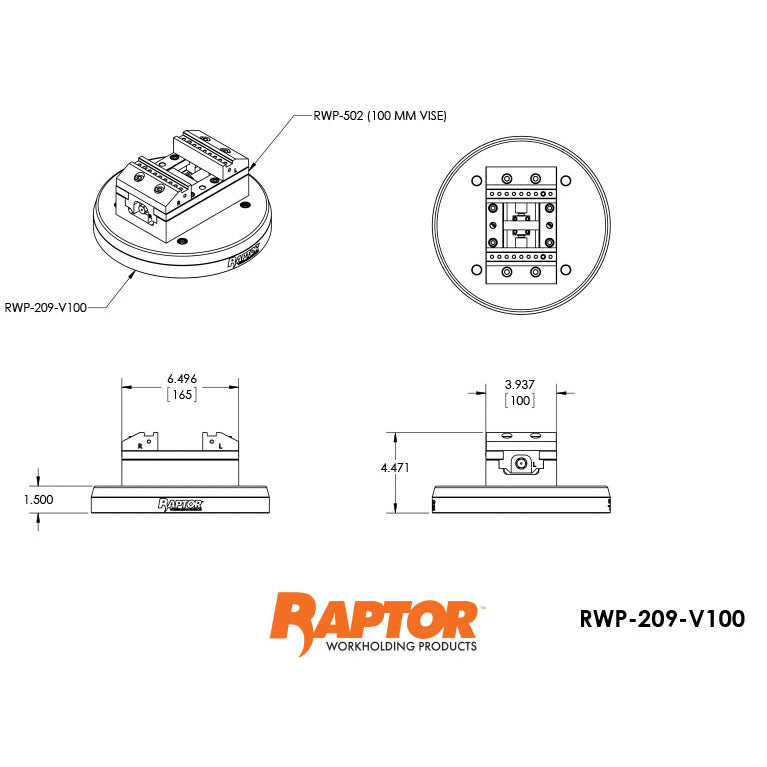

* See additional images for product mounting illustrations.
The RWP-209-V100 is manufactured from 6061 aluminum.
Our adapters and risers allow you to attach Raptor workholding products to any four or five-axis CNC machine. If you need an adapter or riser not seen here, please let us know.
Qty of one 5/16-18 X 1-1/4? Socket Head Cap Screw
