Brand: Raptor Workholding Products

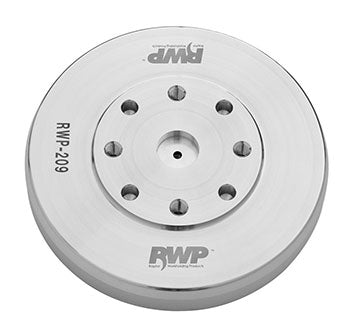

Raptor RWP-209 Aluminum Emergency Adapter 9.055" Diameter, 1.500" Height
SKU: RPT-RWP-209
MPN:
*Product images may differ from actual purchased item.*
**Please contact Sales@freertool.com for all lead times before placing your order. Once paid for, any cancellations will have a 4% cancellation fee.**
*Please note, there is a $50 minimum for all Raptor product orders*
Short Description
Raptor RWP-209 Aluminum Emergency Adapter 9.055" Diameter, 1.500" HeightFull Description
Diameter in. | 9.055 |
---|---|
Height in. | 1.500 |
Machine Type | Any |
Connects to | RWP-001, RWP-001SS, RWP-002, RWP-002SS, RWP-003-4X, RWP-006, RWP-006SS, RWP-013, RWP-013SS, RWP-018, RWP-018SS, RWP-030SS, RWP-601, RWP-602 |
The RWP-209 is an emergency adapter plate that enables any RWP-001(SS), RWP-002(SS), RWP-003-4X, RWP-006(SS), RWP-013(SS), RWP-018(SS), or RWP-030SS dovetail fixture to be mounted on the pallet of your machine. You simply add the mounting holes necessary to connect this adapter to your machine. Once this adapter is mounted to your machine a Raptor Dovetail Fixture simply bolts down using the four cap screws and one dowel pin that are included with your fixture. Also available is the optional RWP-Plug-208 and Cap Screw for the bottom side of the adapter. You simply turn down the O.D. to match the hole of your machine or rotary table pallet, drop the plug in and tighten the cap screw. This keeps your adapter centered and prevents movement.
The RWP-209 is 9.055? O.D. X 1.500? high.
The RWP-209 is manufactured from 6061 aluminum.
Our adapters and risers allow you to attach Raptor workholding products to any four or five-axis CNC machine. If you need an adapter or riser not seen here, please let us know.
Qty of one 5/16-18 X 1-1/4? Socket Head Cap Screw
